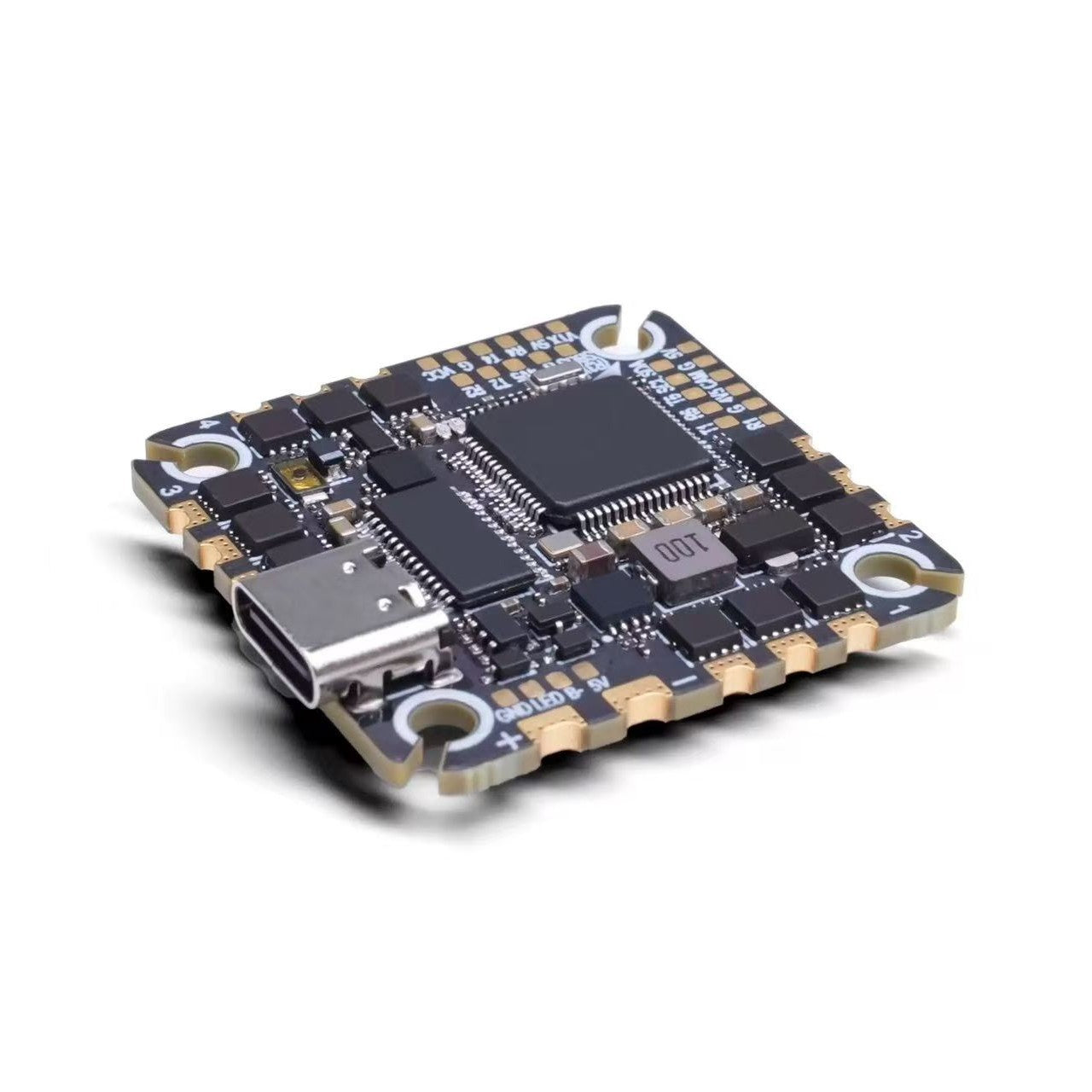

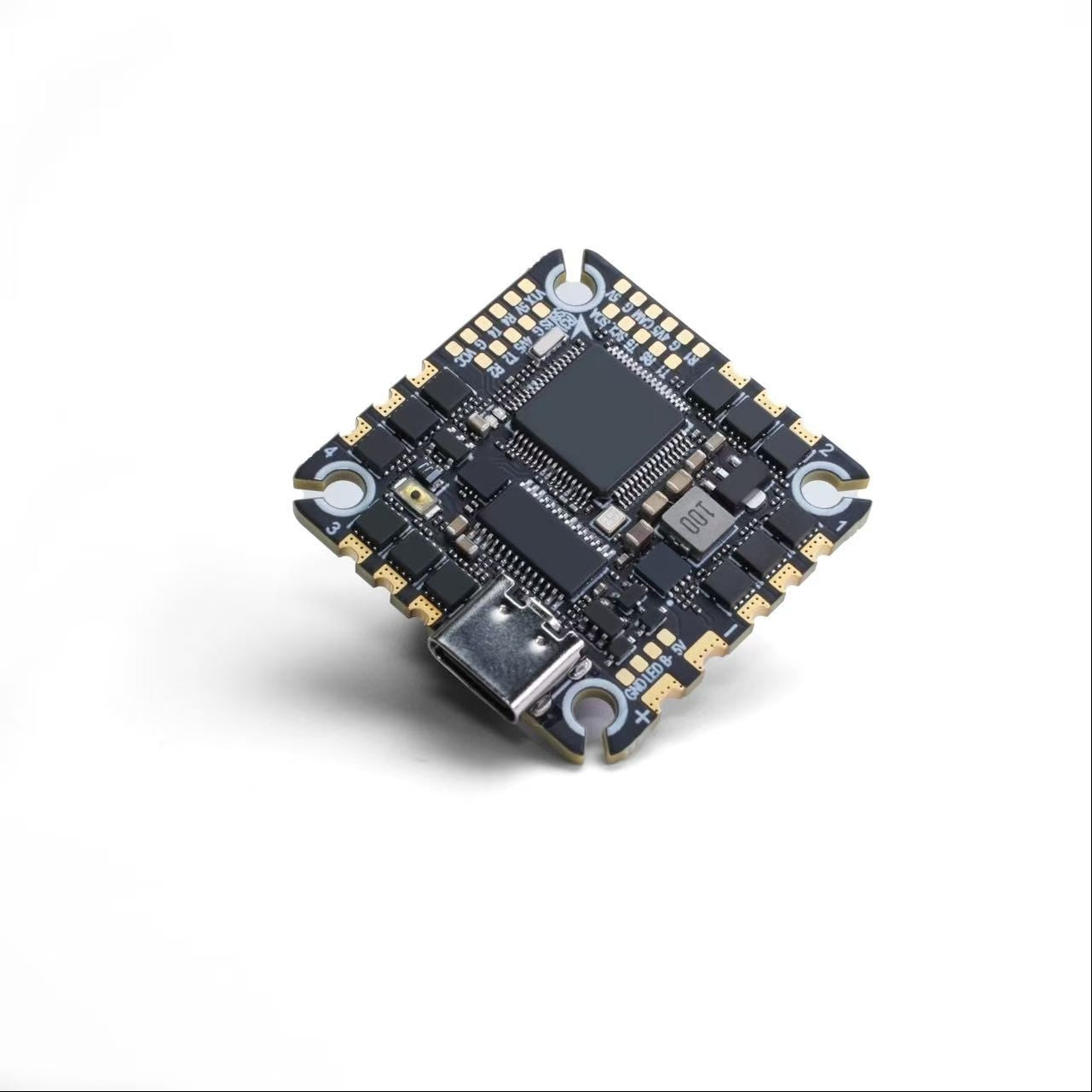

ZeniRace F405 / F722 AIO 40A Flight Controller

Name: ZeniRace F405 / F722 AIO 40A Flight Controller
Brand: ZeniRace
Price: 119.99 USD
Availability: InStock

Powered by the STM32 F405 or F722 processor, delivering fast loop times and responsive flight control for modern FPV builds.

Supporting 2–6S LiPo input with an integrated 40A BLHeli_S ESC, the AIO delivers reliable power for freestyle, racing, and everyday flying.

Equipped with the ICM-42688-P Gyroscope, providing highly accurate motion sensing for smooth control and precise PID tuning.

Native compatibility with DJI O3 / O4 Air Unit, allowing quick installation without additional adapters.

Integrated support for GPS, Barometer, LED, Buzzer, I2C, CRSF, SBUS, IBUS, DSM, giving pilots everything needed for advanced FPV configurations.

Featuring a 40A Continuous / 50A Burst ESC powered by BB51 MCU with BLHeli_S firmware.

Integrated TVS protection safeguards the electronics against voltage spikes during aggressive throttle changes.

With a 25.5×25.5mm mounting pattern and only 15g weight, it fits perfectly into modern lightweight FPV builds.

$119.99

Tax included. Shipping calculated at checkout.

Type

F722 AIO 40A

F405 AIO 40A

Free shipping on orders over $99

In stock, ready to ship
Inventory on the way

[{"id":67117089587245,"title":"F722 AIO 40A","option1":"F722 AIO 40A","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":{"id":40022660710445,"product_id":15210198564909,"position":1,"created_at":"2026-07-25T05:04:19-07:00","updated_at":"2026-07-25T05:04:20-07:00","alt":null,"width":1281,"height":1281,"src":"\/\/zenirace.com\/cdn\/shop\/files\/a1dca365e4ca3147ce1b291ec74b038b_crop.jpg?v=1784981060","variant_ids":[67117089587245,67117089620013]},"available":true,"name":"ZeniRace F405 \/ F722 AIO 40A Flight Controller - F722 AIO 40A","public_title":"F722 AIO 40A","options":["F722 AIO 40A"],"price":11999,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":44715258708013,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1281,"width":1281,"src":"\/\/zenirace.com\/cdn\/shop\/files\/a1dca365e4ca3147ce1b291ec74b038b_crop.jpg?v=1784981060"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67117089620013,"title":"F405 AIO 40A","option1":"F405 AIO 40A","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":{"id":40022660710445,"product_id":15210198564909,"position":1,"created_at":"2026-07-25T05:04:19-07:00","updated_at":"2026-07-25T05:04:20-07:00","alt":null,"width":1281,"height":1281,"src":"\/\/zenirace.com\/cdn\/shop\/files\/a1dca365e4ca3147ce1b291ec74b038b_crop.jpg?v=1784981060","variant_ids":[67117089587245,67117089620013]},"available":true,"name":"ZeniRace F405 \/ F722 AIO 40A Flight Controller - F405 AIO 40A","public_title":"F405 AIO 40A","options":["F405 AIO 40A"],"price":11499,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":44715258708013,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1281,"width":1281,"src":"\/\/zenirace.com\/cdn\/shop\/files\/a1dca365e4ca3147ce1b291ec74b038b_crop.jpg?v=1784981060"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The Brain Behind Every Flight.

Compact. Powerful. Ready for every build.

Stable Under Pressure.

Reliable power delivery for demanding freestyle and racing builds.

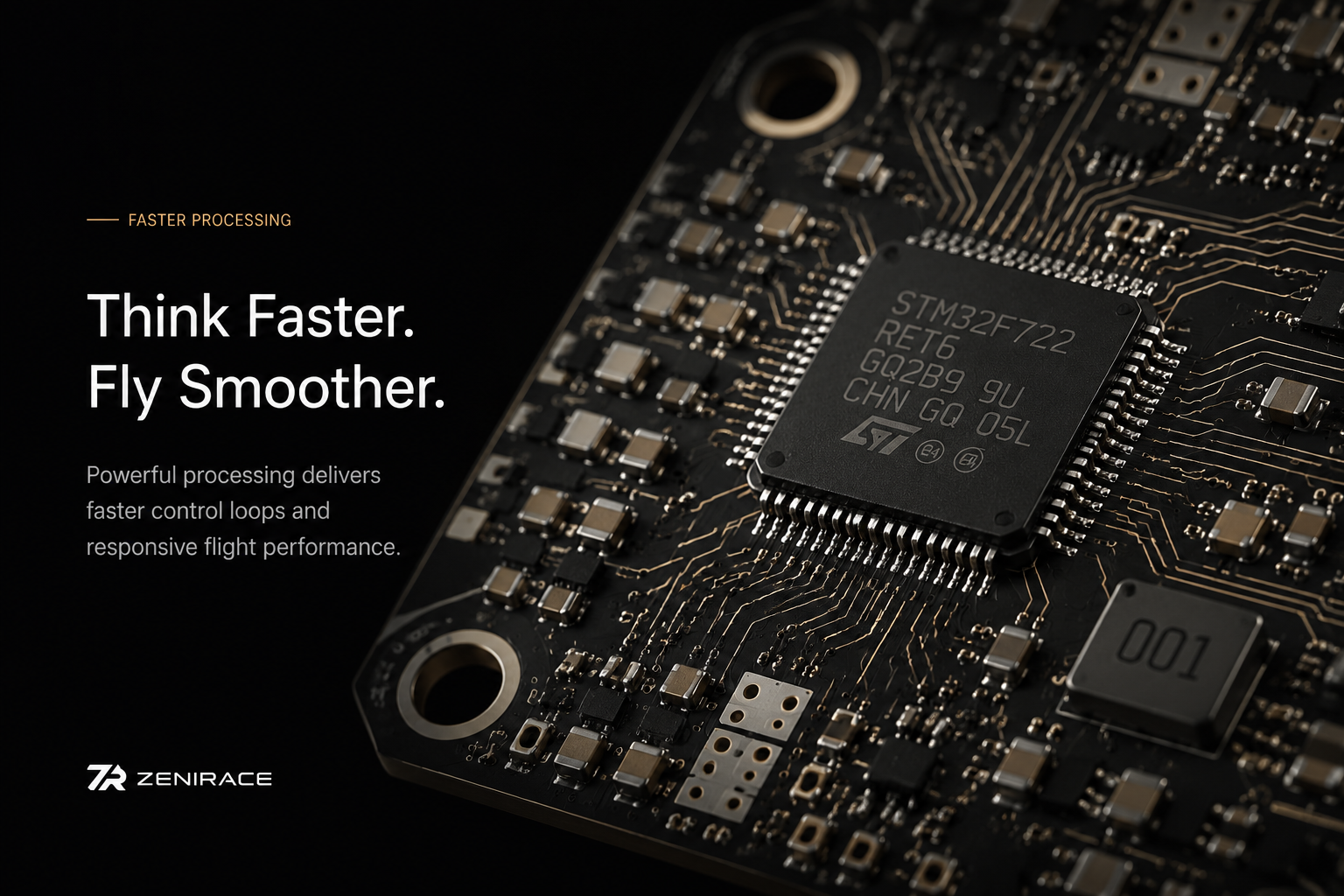

Think Faster. Fly Smoother.

Powerful processing delivers faster control loops and responsive flight performance.

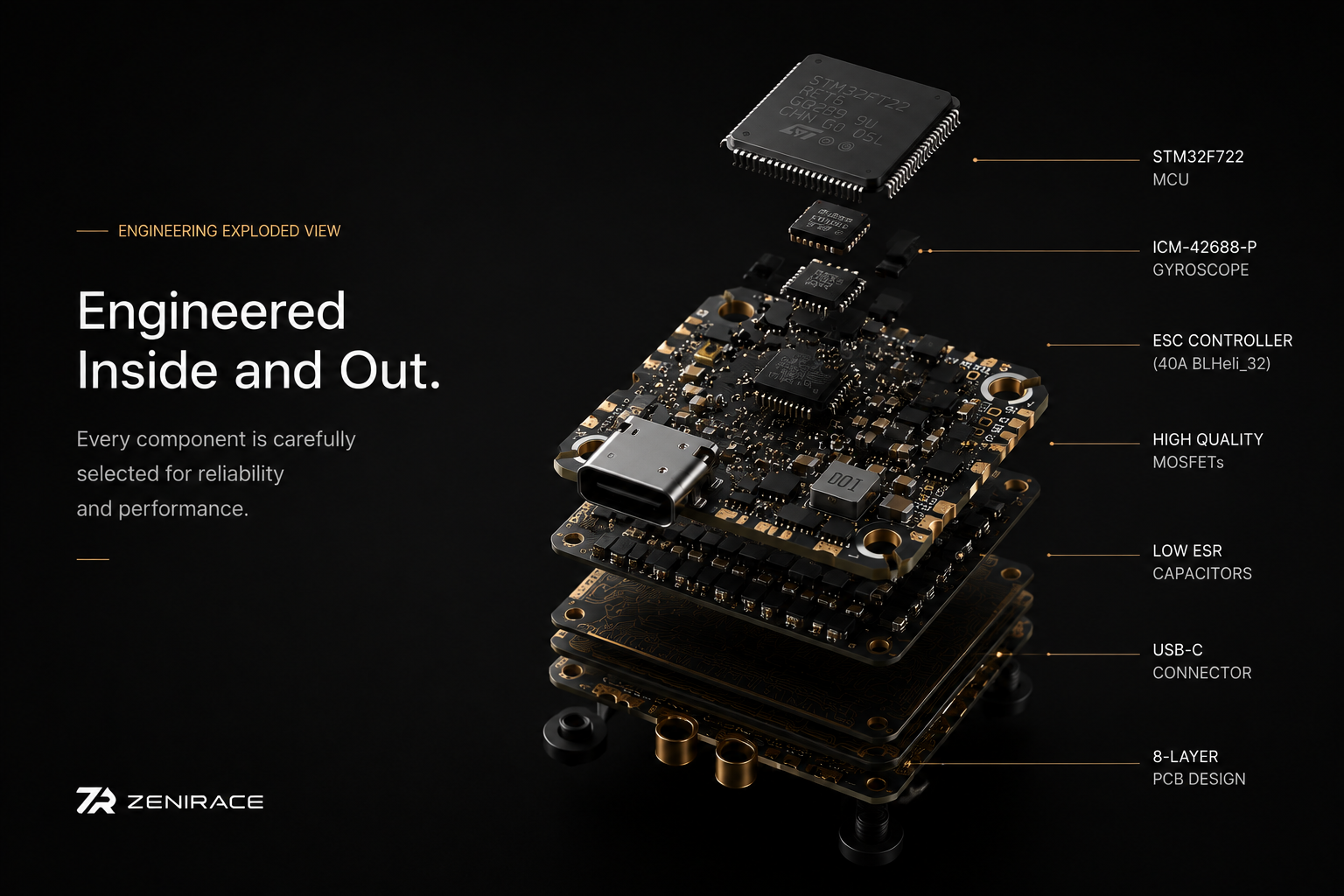

Engineered Inside and Out.

Every component is carefully selected for reliability and performance.

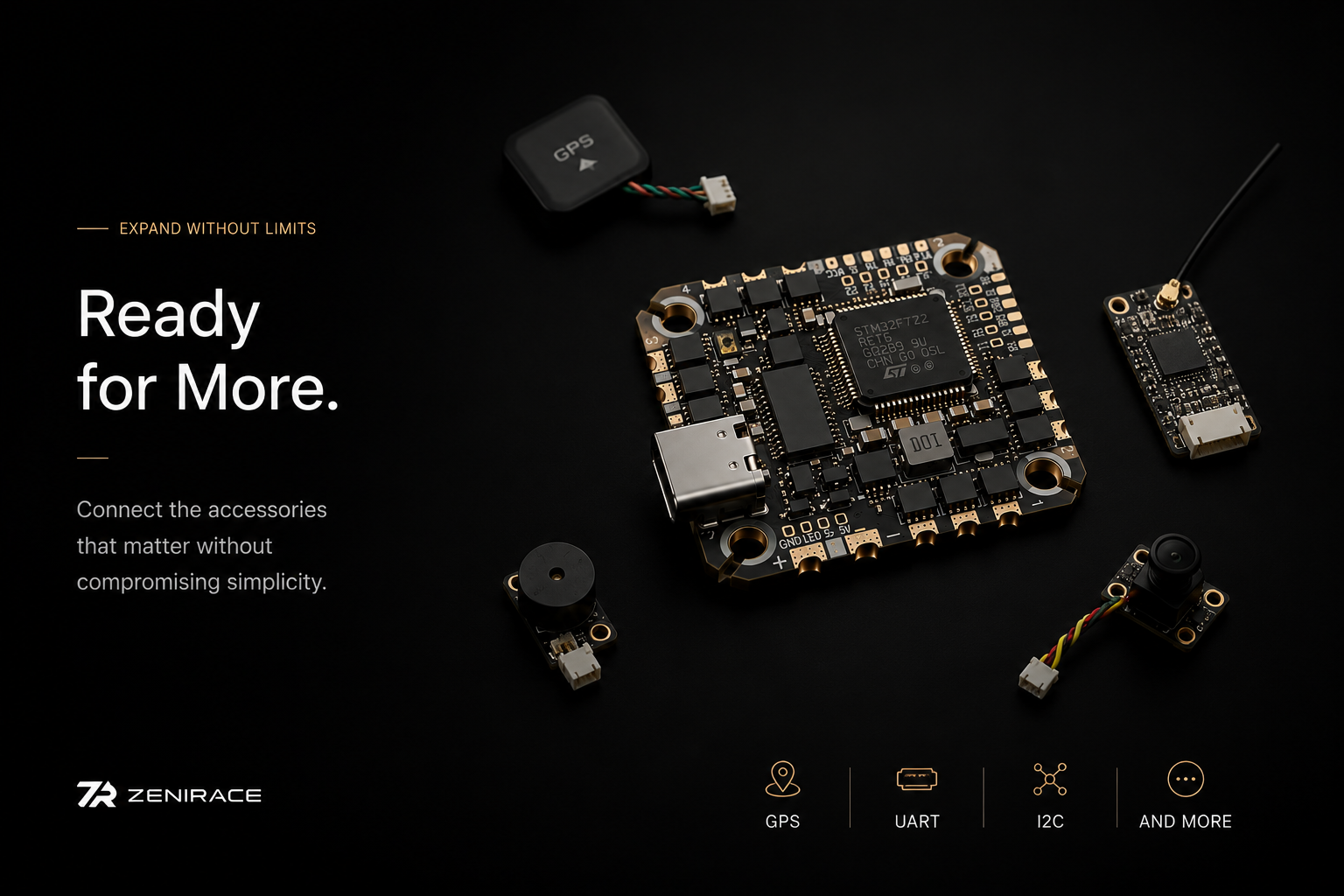

Ready for More.

Connect the accessories that matter without compromising simplicity.

ZeniRace F405 / F722 AIO 40A Flight Controller FAQ

The ZeniRace AIO supports 2S to 6S LiPo batteries (DC 7–26V), making it suitable for a wide range of FPV builds, from lightweight freestyle quads to high-performance racing drones.

Yes. The flight controller featuresnative support for DJI O3 and O4 Air Unit, allowing for a cleaner installation without additional adapters.

The ZeniRace AIO is fully compatible with Betaflight, providing easy configuration, tuning, and firmware updates through the Betaflight Configurator.

The flight controller supports multiple receiver protocols, including:

CRSF (ExpressLRS / Crossfire)
SBUS
IBUS
DSM

This ensures compatibility with most modern radio systems.

Yes. The board includes dedicated UART and I2C connections for GPS modules, making it suitable for long-range flying, rescue mode, and advanced navigation features.

Yes. The ZeniRace AIO integrates a 40A continuous / 50A burst 4-in-1 ESC, reducing wiring complexity while providing reliable power delivery for modern FPV motors.

This AIO pairs well with most 20xx and 22xx series brushless motors, including:

2004
2205
2207
2207.5
2306
2306.5

Choose the motor KV according to your propeller size and battery voltage.

Absolutely. The combination of a fast STM32 processor, ICM-42688 gyro, and integrated 40A ESC makes it ideal for:

FPV Freestyle
FPV Racing
Cinematic FPV
Lightweight Long-Range Builds

Yes. The integrated current sensor supports real-time current monitoring and telemetry in Betaflight, helping pilots track battery consumption more accurately.

The ZeniRace AIO includes TVS surge protection, helping safeguard the electronics from voltage spikes caused by sudden throttle changes or power fluctuations.

The board uses a25.5 × 25.5 mm M3 mounting pattern, which is compatible with many toothpick, lightweight freestyle, and micro FPV frames.

Yes. Motors, receiver, camera, VTX, and power leads need to be soldered to the designated pads. A detailed wiring diagram is included to simplify installation.

Yes. Dedicated pads are available for bothbuzzerandaddressable LED strips, allowing you to improve visibility and locate your drone after a crash.

The USB Type-C port is used forBetaflight configuration, firmware flashing, and parameter tuning. It also provides a convenient way to configure the flight controller without connecting the battery.

Yes. The integrated Flight Controller and ESC simplify wiring and reduce build complexity, making it an excellent choice for beginners building their first FPV drone, while still offering the performance and expandability demanded by experienced pilots.
