Power. Delivered Precisely.
Stable current delivery for confident flights under every throttle input.
Ready for Maximum Load.
Consistent power delivery when every amp matters.

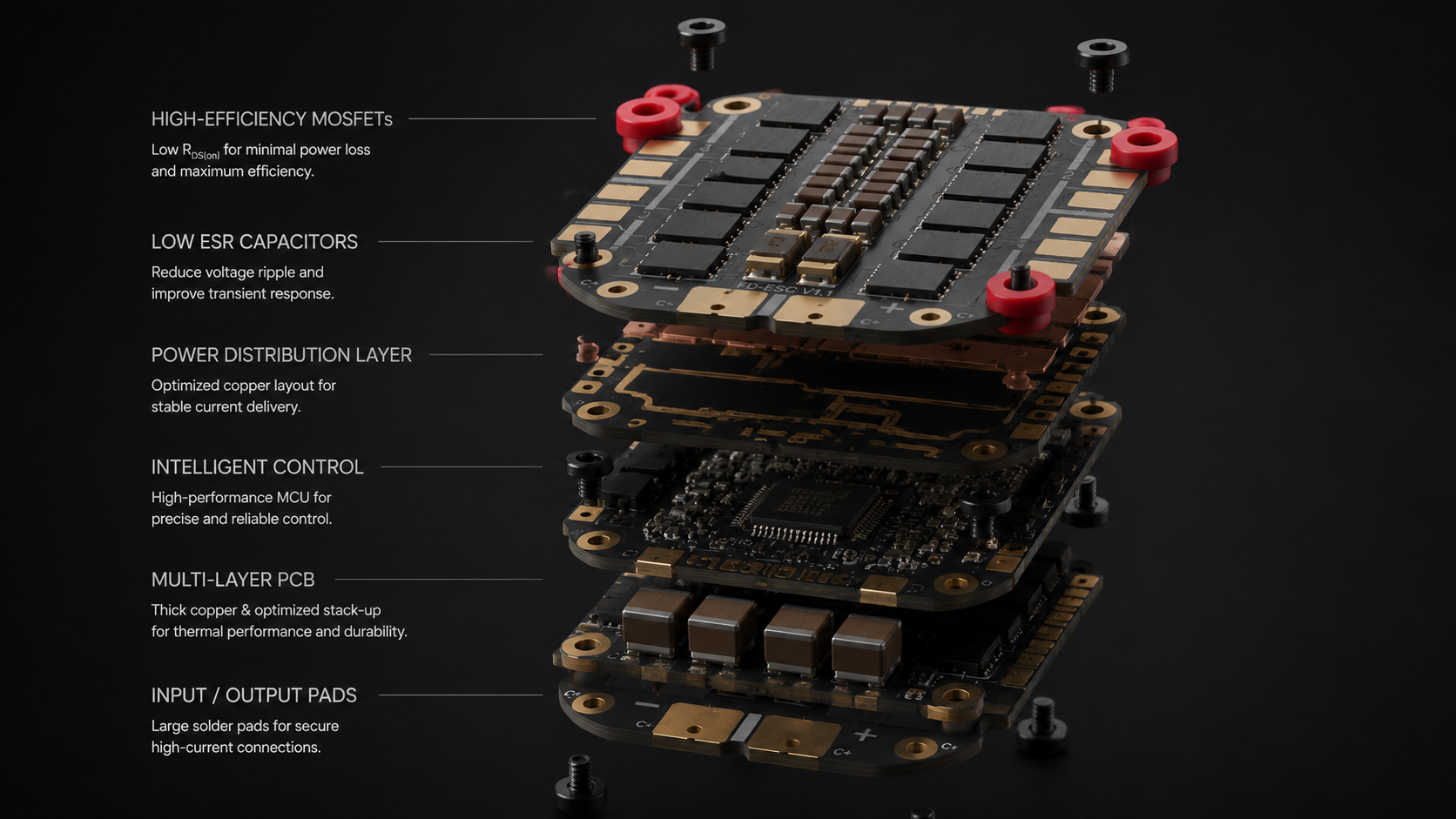

Every Layer Matters.
Engineered from the inside out for efficiency and reliability.
Designed for Every Build.
Fits seamlessly into modern freestyle, racing and long-range platforms.
Built by Pilots.
The foundation of every reliable FPV build.

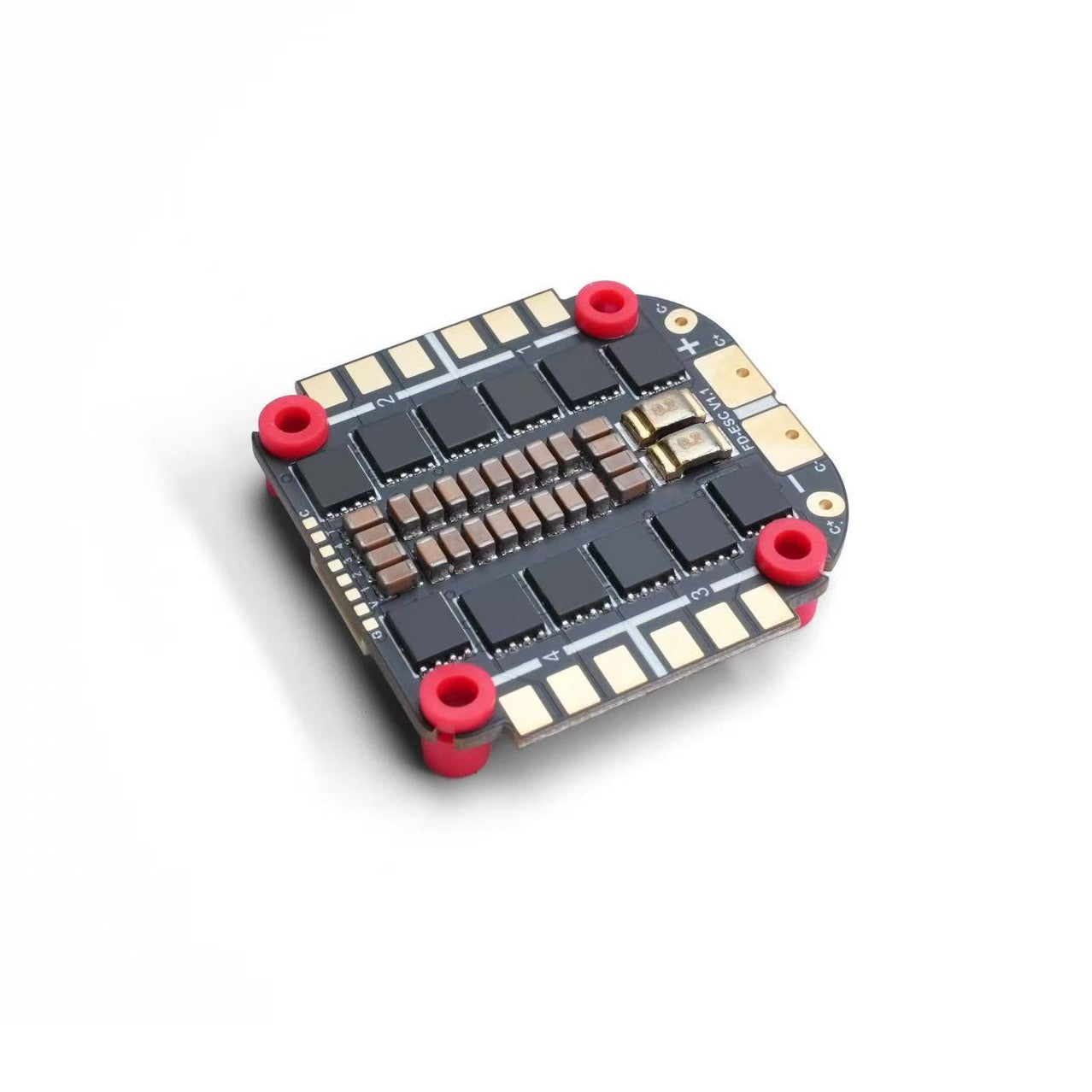

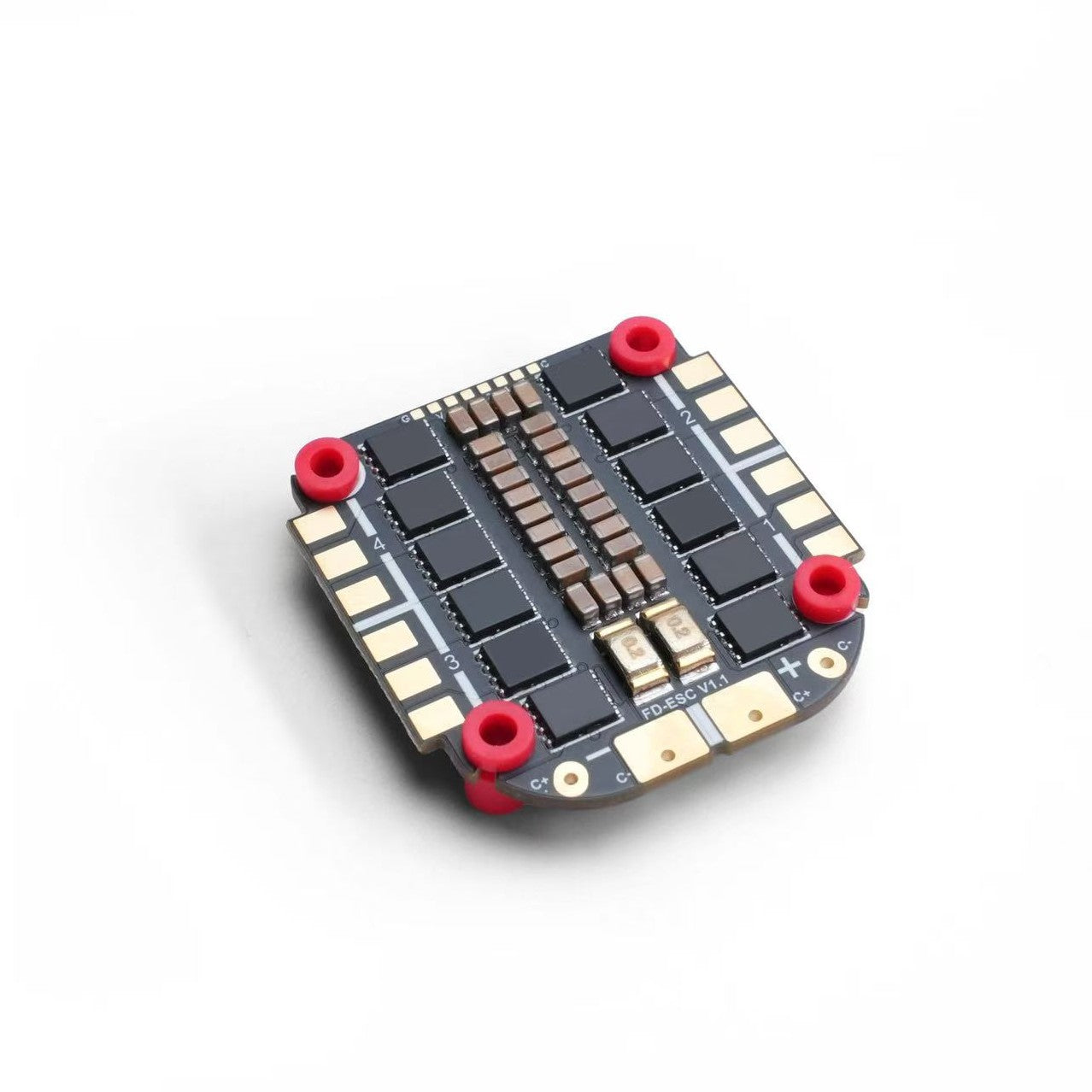

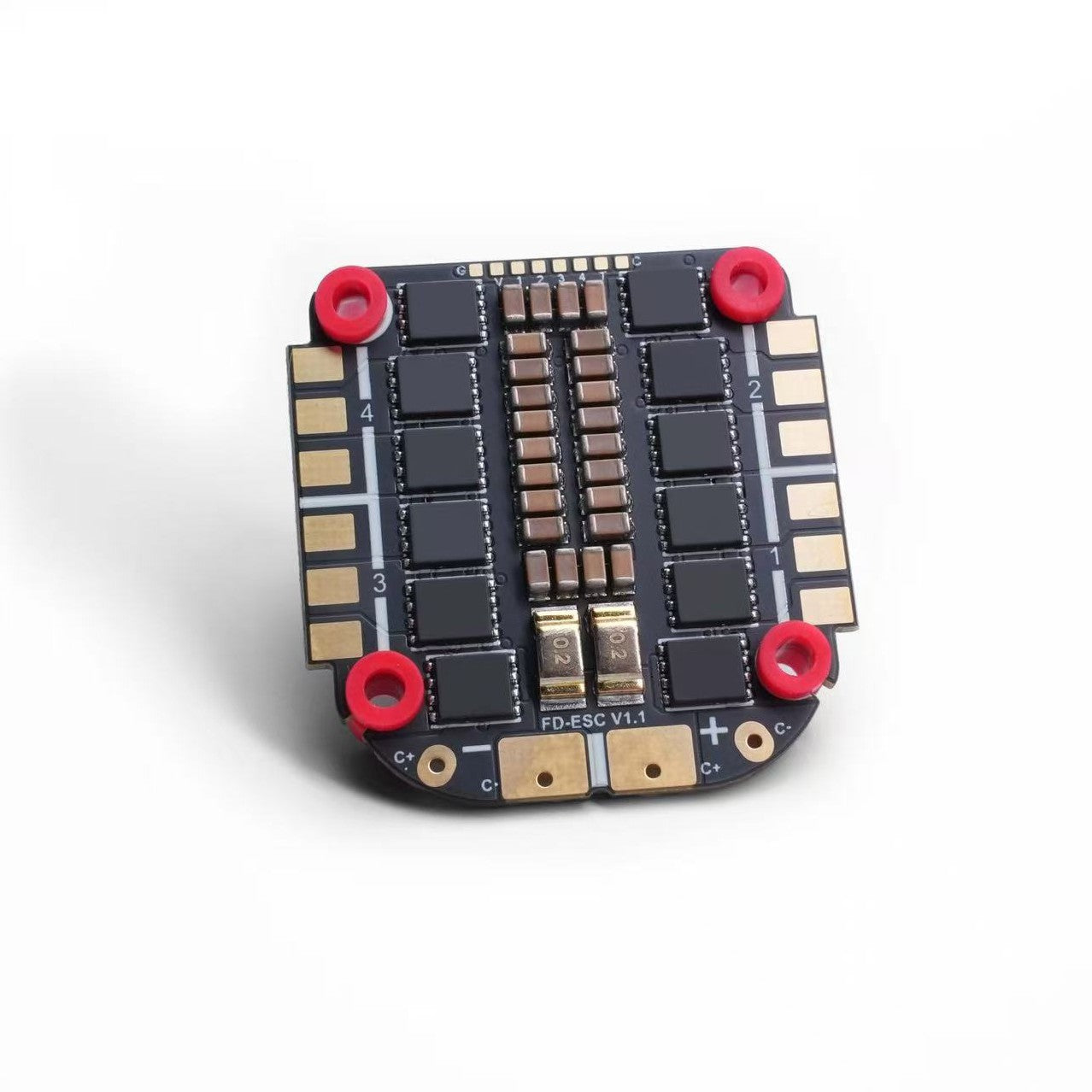

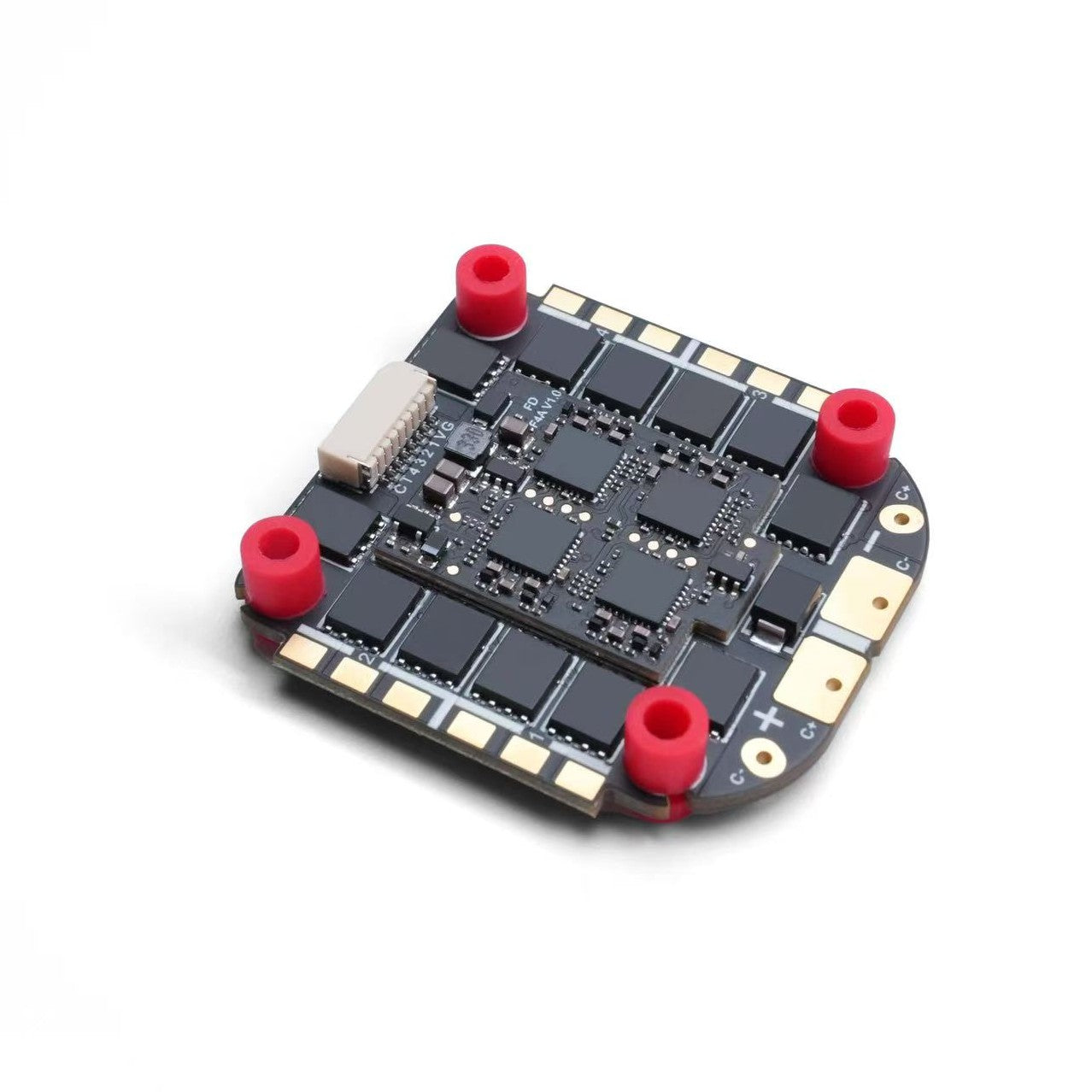

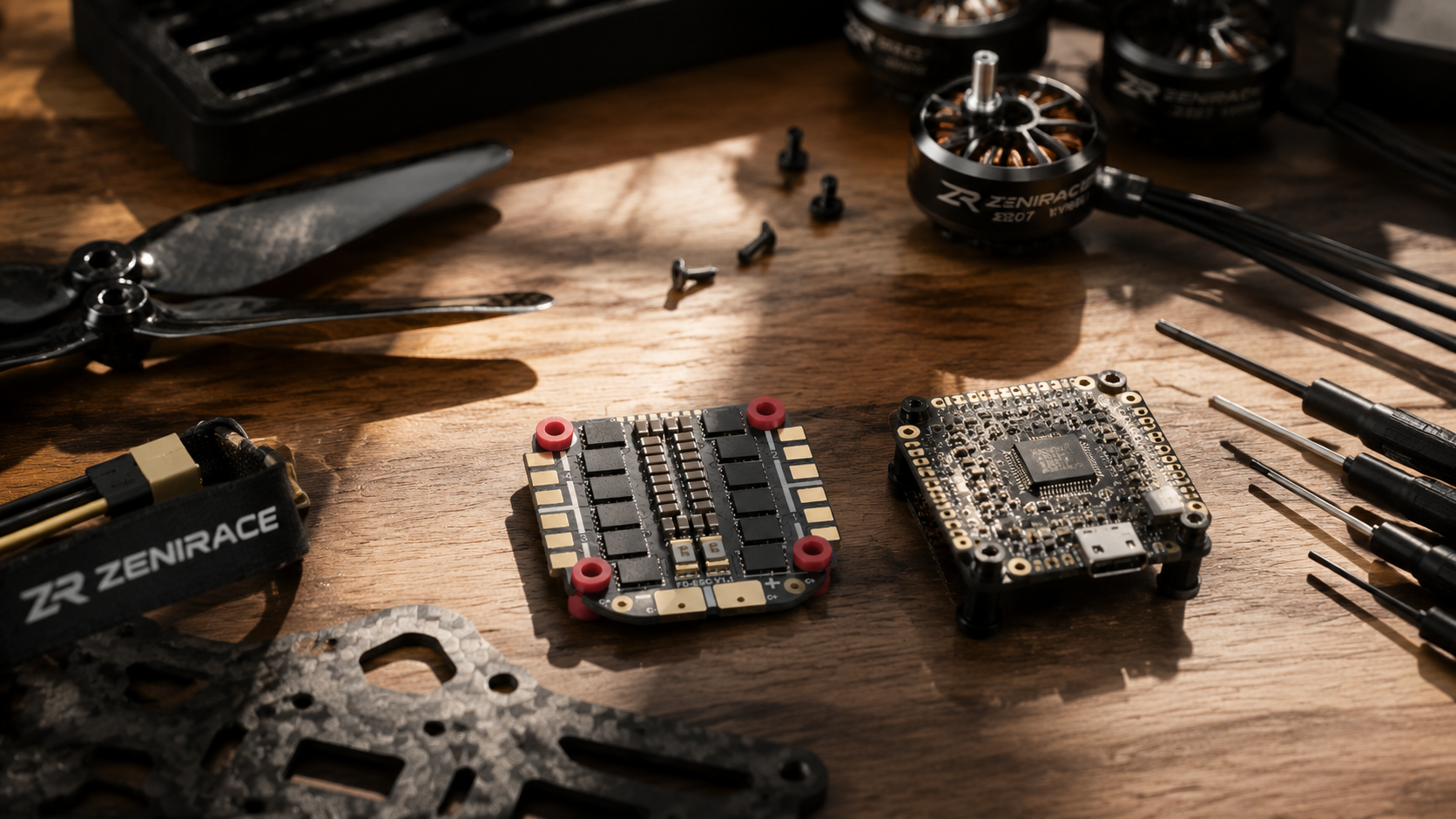

ZeniRace 60A/65A/70A 4-in-1 ESC FAQ
This 4-in-1 ESC supports 2S to 8S LiPo batteries (DC 7–36V), making it suitable for a wide range of FPV builds—from lightweight freestyle drones to high-power long-range and cinematic platforms.
The ESC is compatible with both BLHeli_32 and AM32 firmware.
Depending on the version you choose, you can benefit from advanced features such as configurable startup tones, motor timing adjustments, RPM filtering, and bidirectional DShot support.
Yes.
The ESC fully supports Bidirectional DShot, allowing Betaflight to use RPM Filtering for smoother flight performance, reduced motor noise, and improved PID tuning.
Continuous Current: 70A
Burst Current: 80A
This provides ample power for demanding freestyle, racing, and cinematic flying while maintaining stable performance under heavy loads.
Absolutely.
The 70A output is ideal for 5-inch and larger FPV drones, especially high-performance 6S and 8S builds using powerful brushless motors.
No.
This ESC does not include an onboard BEC and is designed to work with a compatible flight controller that provides regulated power outputs for your receiver, VTX, camera, and other peripherals.
Yes.
The integrated current sensor provides accurate current telemetry to your flight controller, allowing real-time battery consumption monitoring, OSD display, and more precise battery management.
The ESC includes TVS surge protection, helping absorb voltage spikes generated during aggressive throttle changes or sudden motor braking.
This improves overall reliability and helps protect sensitive electronic components.
The ESC supports:DShot150、DShot300、DShot600、PWM
Digital DShot protocols are recommended for the best throttle precision and reliability.
Yes.
The ESC works seamlessly with Betaflight-compatible flight controllers that support standard ESC signal connections and DShot protocols.

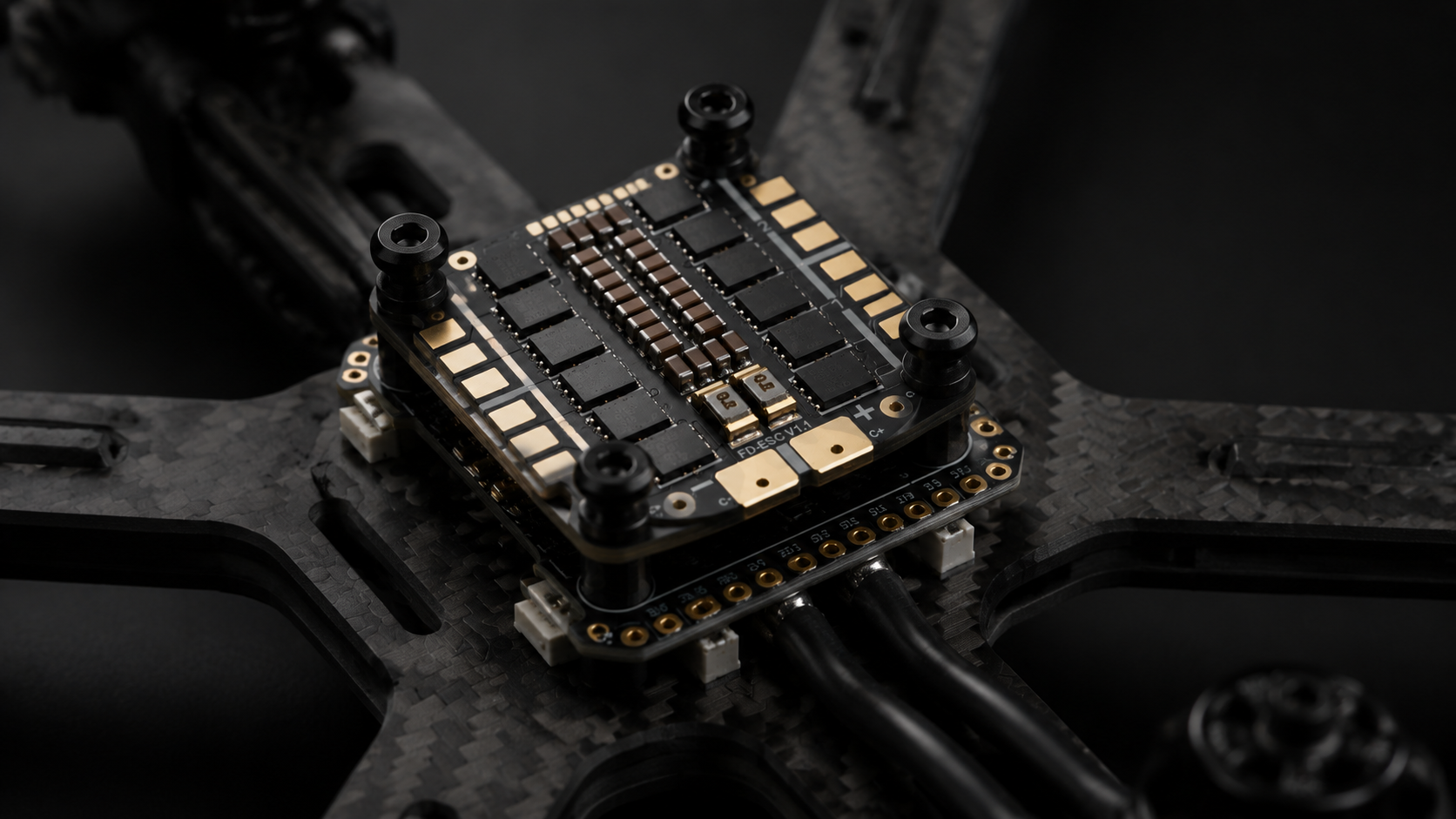

The ESC features a 30.5 × 30.5 mm (M4) mounting pattern, making it compatible with most standard full-size FPV racing and freestyle frames.
Yes.
Its high current capacity, low-latency response, and broad voltage support make it suitable for:FPV Freestyle、FPV Racing、Cinematic FPV、Long-Range FPV、Heavy-Lift FPV Builds
This ESC pairs well with most high-performance brushless motors running on 4S to 8S LiPo batteries, including common sizes such as:
2207
2306
2306.5
2407
2507
Larger motors for cinematic and long-range builds
Always ensure your motor and propeller combination stays within the ESC's current rating.
Yes.
The ESC is designed for custom FPV builds and requires soldering of:
Battery leads
Motor wires
Flight controller signal wires
Professional soldering is recommended to ensure optimal performance and reliability.
The 70A ESC is ideal for pilots who demand maximum power, precise throttle control, and dependable reliability.
Whether you're building a competitive freestyle quad, a high-speed racing drone, or a heavy-duty cinematic platform, it delivers the performance needed for modern high-power FPV systems.
