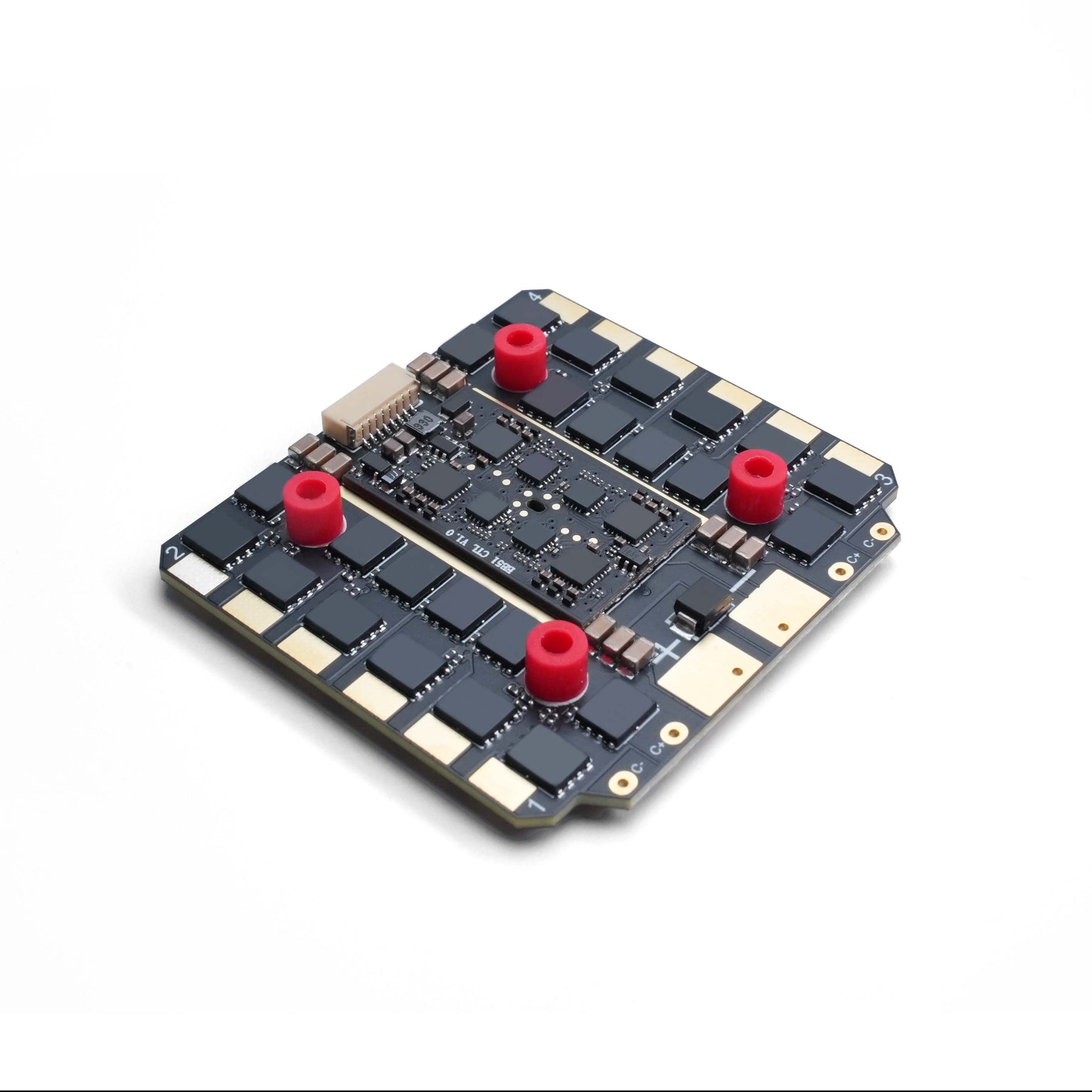

A rectangular ZeniRace 80A/100A 4-in-1 ESC with a black PCB, gold-plated contacts, and four prominent red terminal screws, photographed on a clean white background.
A square ZeniRace 80A/100A 4-in-1 ESC with a dark gray/black PCB, featuring multiple black rectangular components, gold-colored solder pads, and four prominent red cylindrical terminal caps, shown on a clean white background.

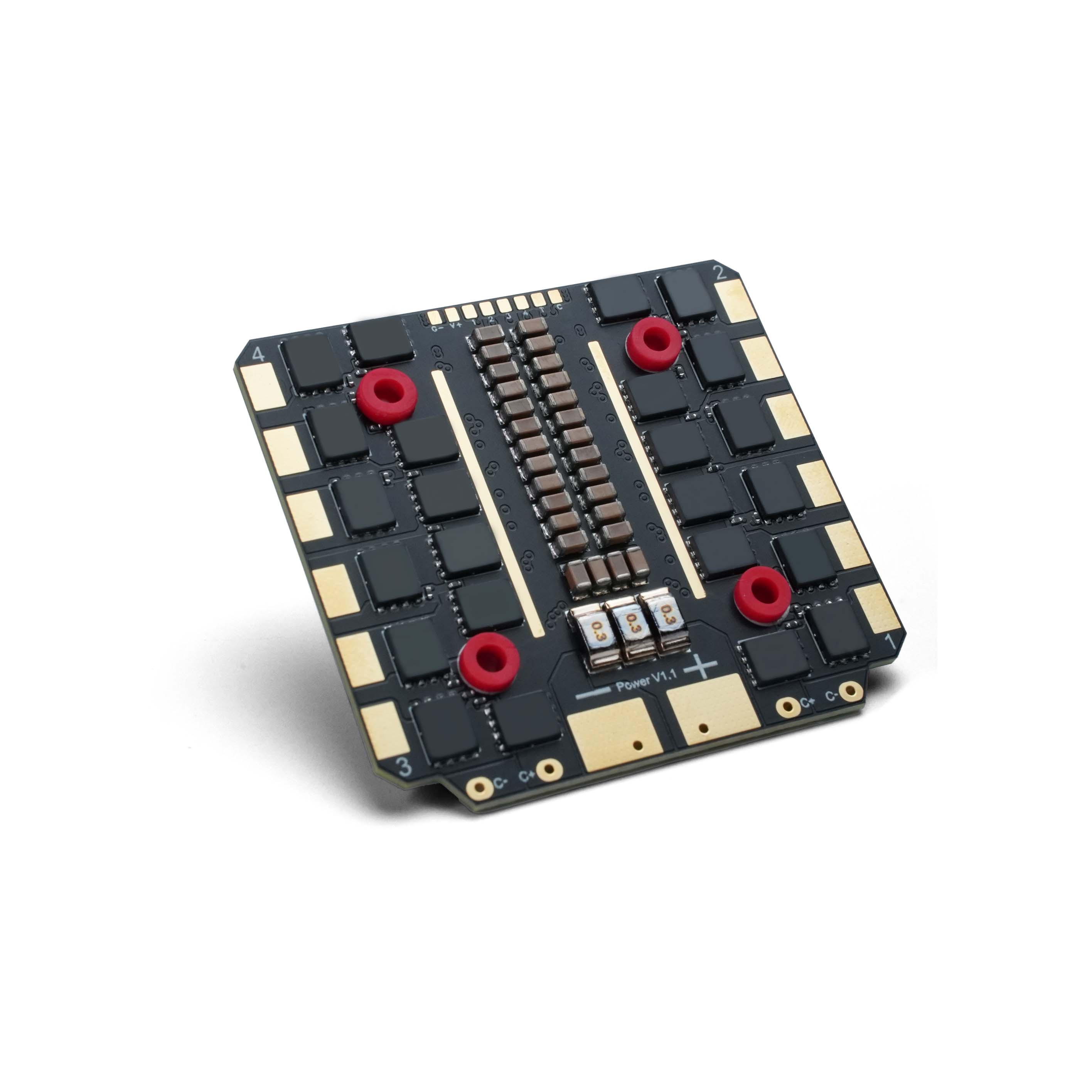

A square ZeniRace 80A/100A 4-in-1 ESC with a black PCB, gold-plated contacts, multiple black integrated circuit chips, and four prominent red terminal rings, shown on a clean white background.

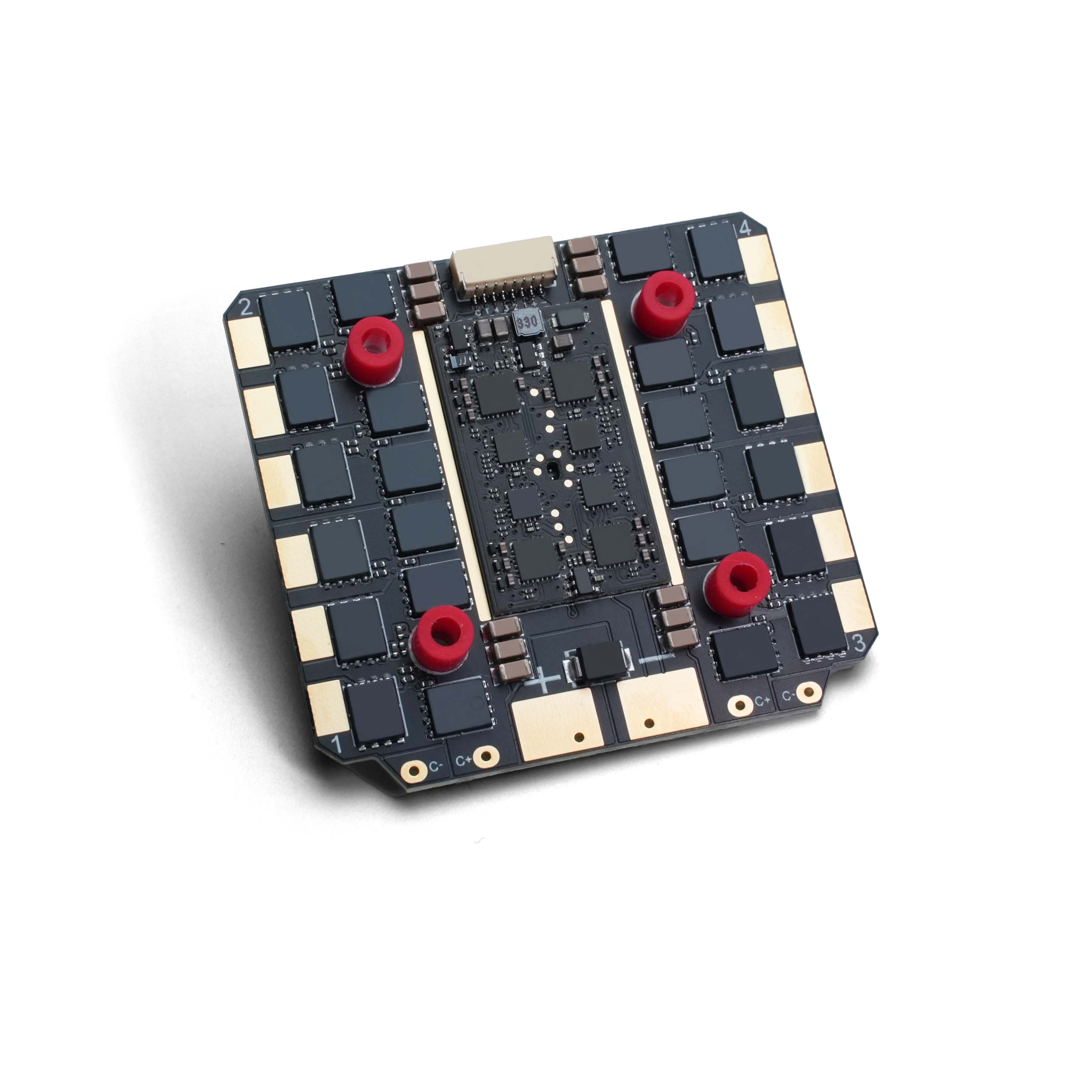

A square ZeniRace 80A/100A 4-in-1 ESC with a dark green PCB, featuring multiple black integrated circuit chips, gold-plated metal pads, and four prominent red cylindrical components, shown on a clean white background.

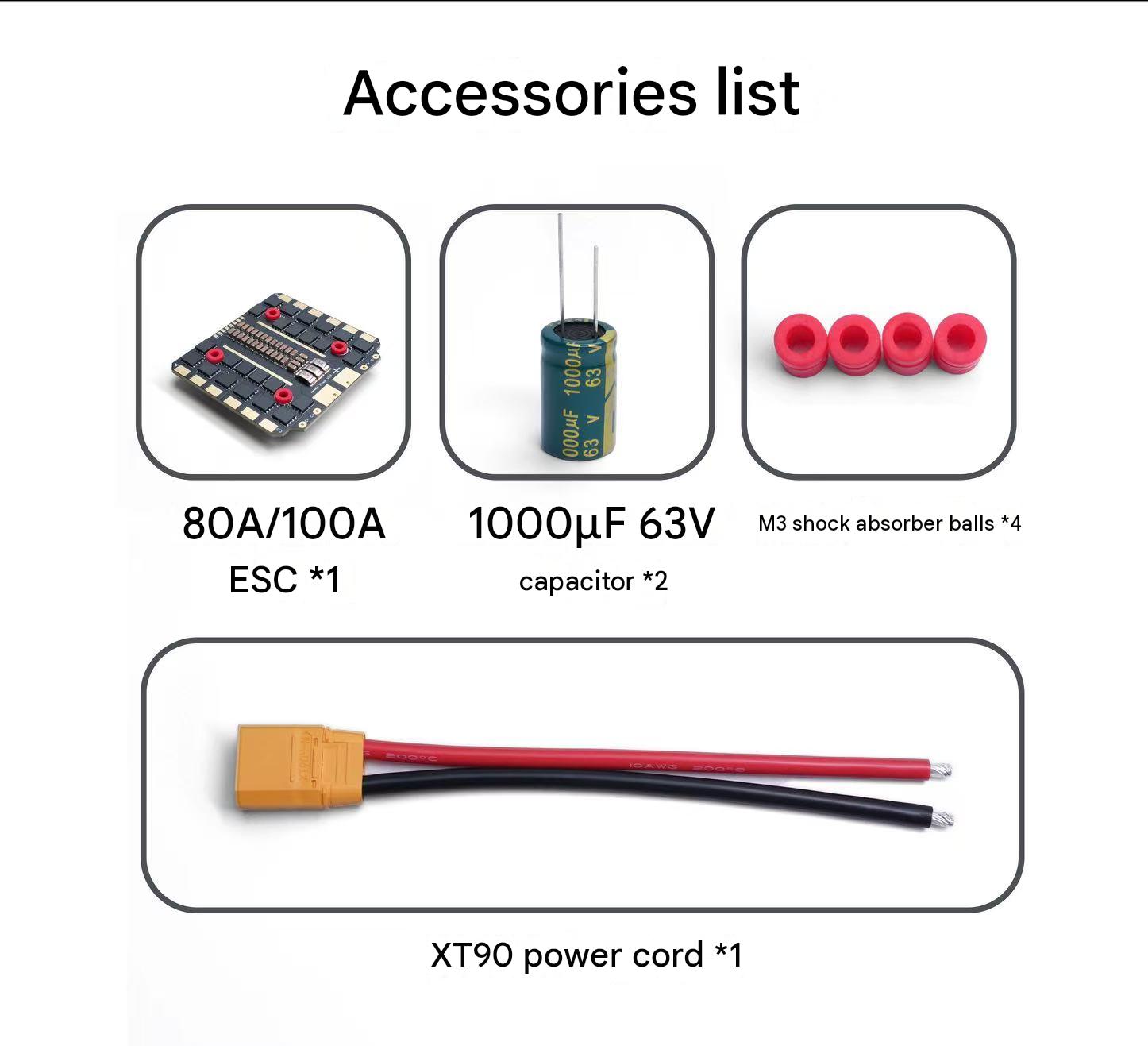

An accessories list graphic showing included components: an ESC module labeled 80A/100A, a 1000uF 63V capacitor, four red M3 shock absorber balls, and a XT90 power cord.
A rectangular ZeniRace 80A/100A 4-in-1 ESC with a black PCB, gold-plated contacts, and four prominent red terminal screws, photographed on a clean white background.
A square ZeniRace 80A/100A 4-in-1 ESC with a dark gray/black PCB, featuring multiple black rectangular components, gold-colored solder pads, and four prominent red cylindrical terminal caps, shown on a clean white background.
A square ZeniRace 80A/100A 4-in-1 ESC with a black PCB, gold-plated contacts, multiple black integrated circuit chips, and four prominent red terminal rings, shown on a clean white background.
A square ZeniRace 80A/100A 4-in-1 ESC with a dark green PCB, featuring multiple black integrated circuit chips, gold-plated metal pads, and four prominent red cylindrical components, shown on a clean white background.
An accessories list graphic showing included components: an ESC module labeled 80A/100A, a 1000uF 63V capacitor, four red M3 shock absorber balls, and a XT90 power cord.

ZeniRace 80A/100A 4-in-1 ESC

SKU: ZR080-032BL

$85.99
/
  • Massive Power for Demanding Builds：Delivers up to 80A / 100A continuous current with 90A / 110A burst capability, providing stable power for demanding FPV builds and high-current applications.
  • Wide 2–8S Voltage Support：Supports DC 7–36V (2–8S LiPo), covering a wide range of high-performance FPV and large multirotor builds.
  • Multiple Firmware Options：Choose from BLHeli32, AM32, BLHeli-S, or BlueJay firmware options to match your preferred ESC ecosystem and build requirements.
  • Firmware-Matched MCU Platform：BLHeli32 and AM32 versions use the AT32F4213 MCU, while BLHeli-S and BlueJay versions use the BB51 MCU.
  • Advanced Motor Protocol Support：Supports DShot150, DShot300, DShot600, and PWM for broad compatibility with modern FPV flight controllers.
  • Built-In Current Telemetry：Integrated current sensing provides real-time current data for battery monitoring, tuning, and flight analysis.
  • TVS Surge Protection：Integrated TVS surge suppression helps protect the ESC against voltage spikes generated during aggressive throttle changes and power connection.
  • Efficient Thermal Performance：High-performance MOSFET architecture supports efficient power delivery and thermal management under sustained high-current loads.
  • 58 × 53.5 mm High-Power Layout：Combines high-current capability with a 58 × 53.5 mm PCB footprint designed for large FPV and high-power multirotor builds.
Continuous Current
MCU/Firmware

Complete Your Build

ZeniRace F722/F405 Flight Controller
ZeniRace F722/F405 Flight Controller
$71.99
ZeniRace H743 Flight Controller
ZeniRace H743 Flight Controller
$99.99

Secure Checkout

Pay securely with
PayPal

Trusted Delivery

🚚 Free Worldwide Shipping
📦 Tracking Available
🌎 Ships to US & EU

Product Guarantee

✓ 30-Day Money Back Guarantee
✓ 12-Month Warranty
✓ Technical Support
SHOP BY BUILD

Compatible Builds

See where this component fits and explore complete recommended configurations.

Based on selected variant: 80A / AT32-F4213/BLHeil32
A close-up of a black quadcopter drone with orange accents and a mounted camera, resting on a dark textured surface with dramatic golden-hour lighting.
RECOMMENDED CONFIGURATION

5" Freestyle

6S
Balanced 6S FPV configurations for freestyle and high-performance flying.
✓ See recommended 5-inch configurations using compatible ZeniRace hardware.
Explore Build
A black quadcopter drone with a camera mounted on its gimbal, flying over a scenic mountain landscape with a river below.
RECOMMENDED CONFIGURATION

7" Long Range

6S / 8S
Higher-current configurations designed for long-range and endurance-oriented FPV builds.
✓ See recommended 7-inch configurations and component combinations.
Explore Build
A large professional drone with a mounted camera and gimbal is flying over a mountainous landscape during sunset or sunrise.
RECOMMENDED CONFIGURATION

Cinelifter

HIGH LOAD
High-load configurations for professional camera payload and demanding propulsion systems.
✓ See recommended Cinelifter configurations for compatible high-current hardware.
Explore Build
i Always verify motor KV, prop size, battery voltage, current draw and payload requirements before finalizing your build.
ZeniRace 80A/100A 4-in-1 ESC
ZeniRace 80A/100A 4-in-1 ESC
$85.99
$85.99

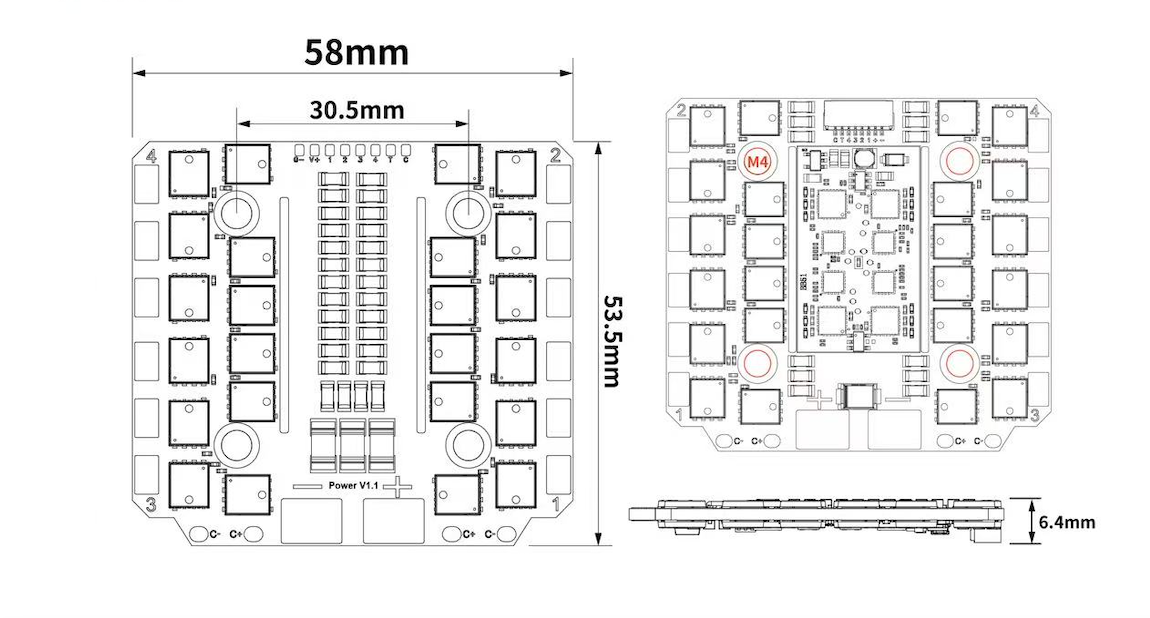

Technical dimension drawing of a rectangular electronic circuit board, showing front, top, and side views with measurements labeled 58mm, 30.5mm, 53.

Built When Power Matters Most

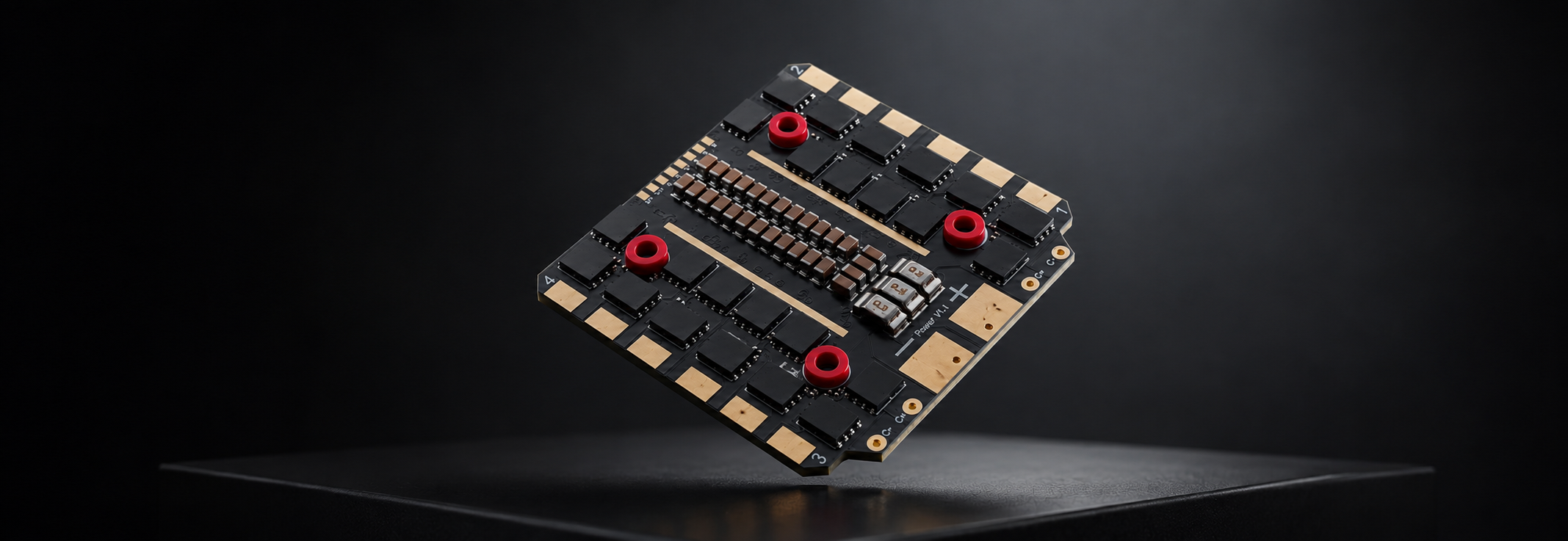

A compact electronic circuit board or PCB module with gold-plated contacts, a black base, and four prominent red circular components, shown floating at an angle on a dark reflective surface against a black background.

Power Starts Here.

Stable power delivery. Intelligent control. Built for demanding FPV systems.

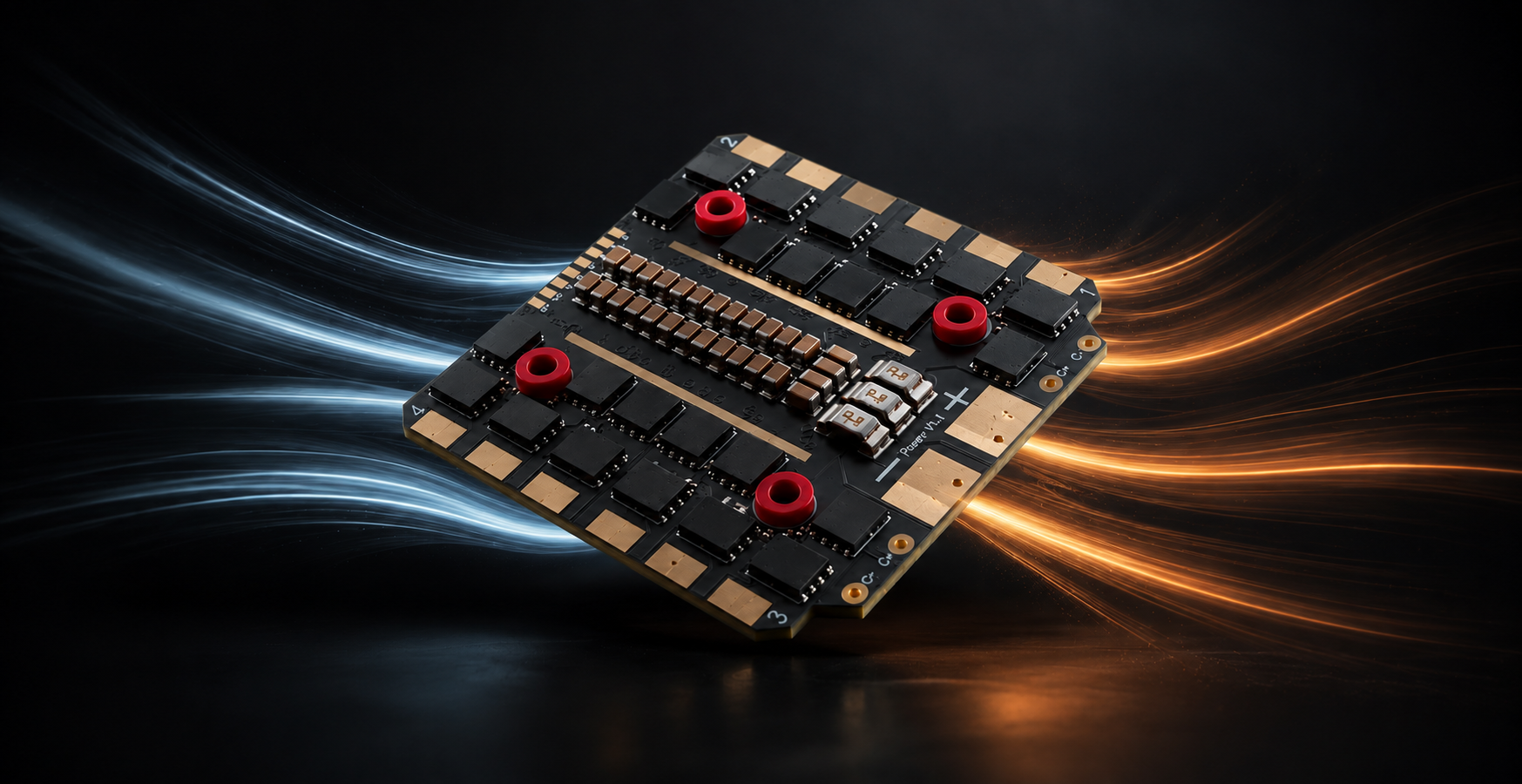

A high-current ZeniRace_80A_100A_4-in-1_ESC with a black and gold PCB, red terminal connectors, and a silver heat sink, shown on a dark background with glowing light effects and text highlighting 80A continuous, 100A continuous, and 110A burst ratings.

Built for Maximum Output.

High-current architecture engineered for demanding power systems.

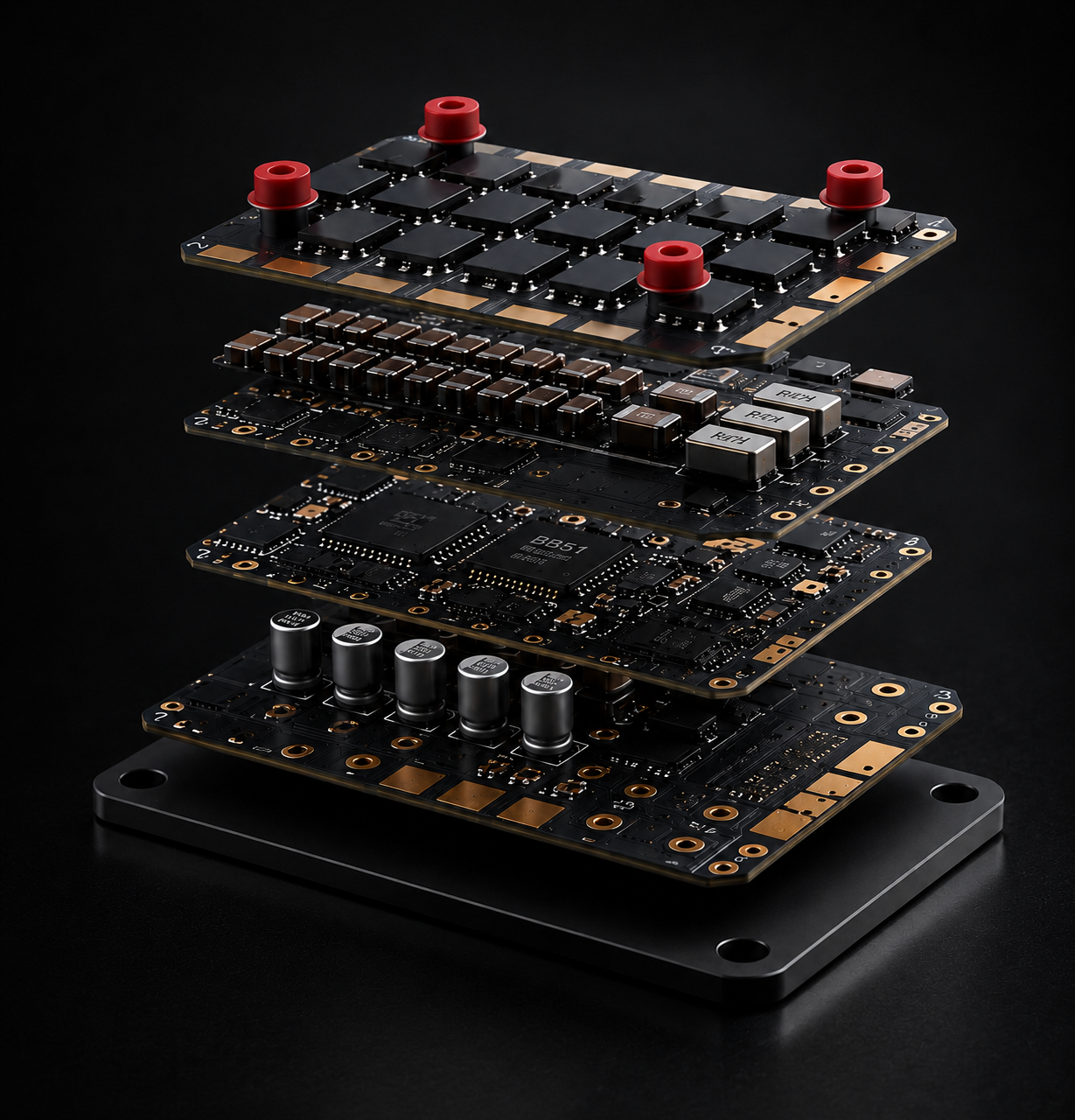

A stack of layered electronic circuit boards and power modules arranged in an exploded vertical stack on a black reflective studio background. The boards are primarily black with gold-plated copper traces, silver cylindrical capacitors, red terminal caps, and a black metal base plate.

Ready for Every Build.

From lightweight freestyle to high-voltage heavy-lift platforms.

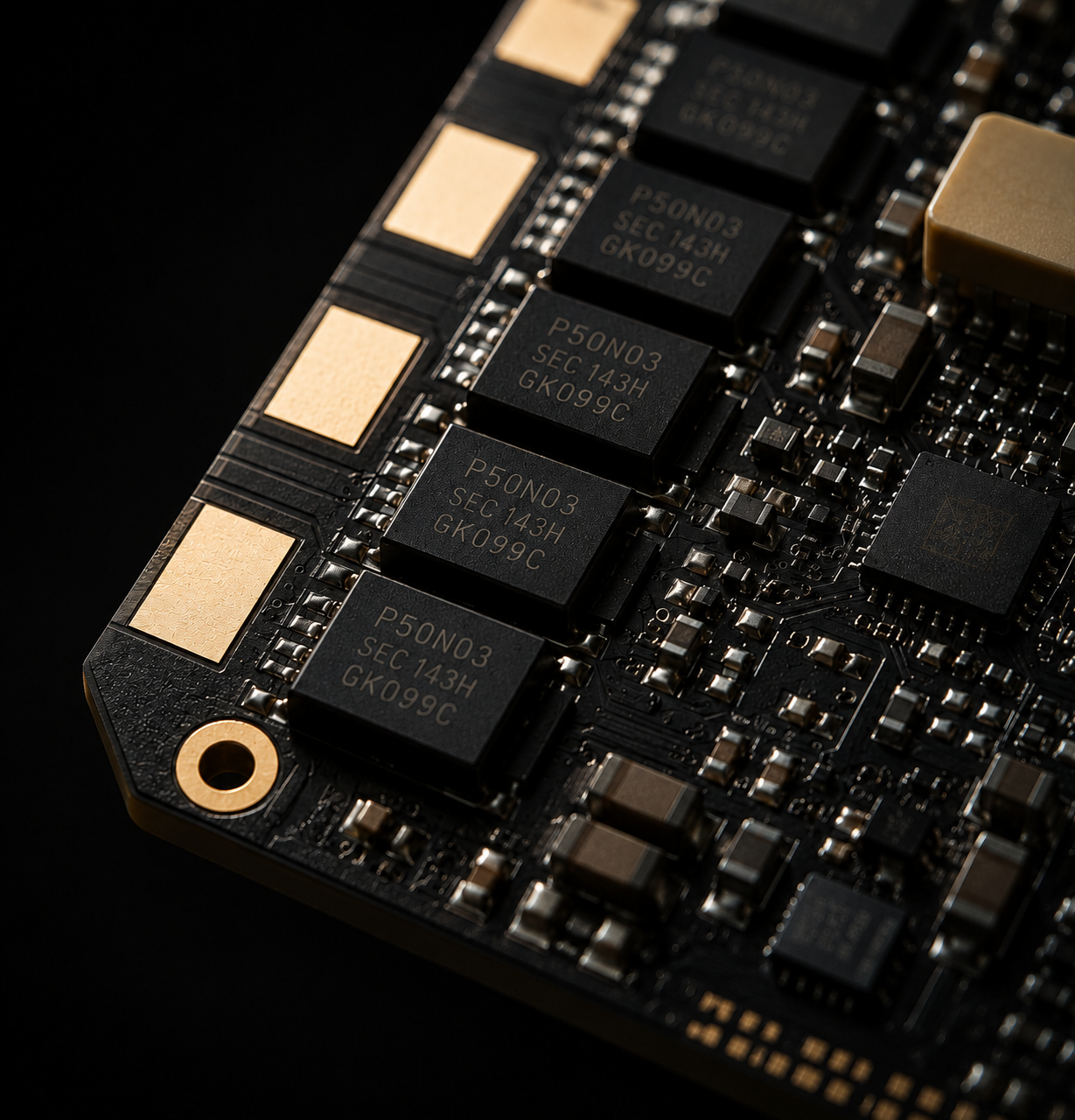

Close-up of a black printed circuit board with multiple black integrated circuit chips, gold-plated pads, and a gold rectangular component on a dark background.

Know Every Watt.

Real-time current sensing for smarter battery management.

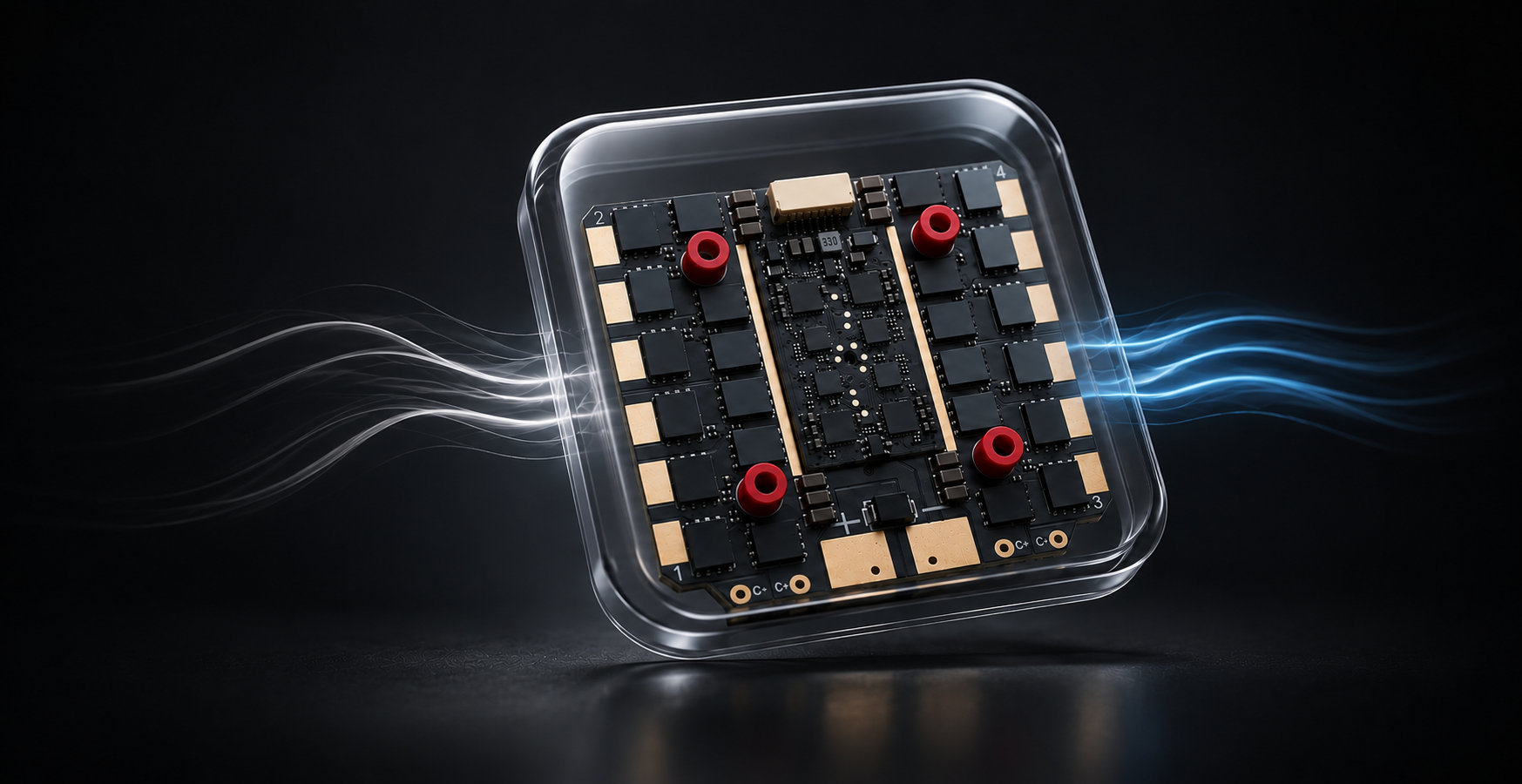

A square transparent protective case containing a black electronic circuit board with gold contacts and red circular components, shown on a dark background with glowing blue and white light effects.

Protection Built In.

Real-time current sensing for smarter battery management.

ZeniRace 80A/100A 4-in-1 ESC FAQ

The ZeniRace 80A and 100A ESCs support DC 7–36V (2S–8S LiPo), making them suitable for a wide range of FPV and UAV platforms, from freestyle and long-range drones to heavy-lift builds.

Both models share the same firmware, MCU, and feature set. The main difference is the current capacity.

80A ESC Continuous Current：80A Burst Current：90A Recommended Use：5–8" Freestyle, Long Range, Racing

100A ESC Continuous Current：100A Burst Current：110A Recommended Use：Heavy-Lift, Cinelifter, X8, High-Power UAV

If your setup requires larger motors, higher voltage, or heavier payloads, the 100A ESC is the better choice.

Yes. The ESC is compatible with both BLHeli_S and BlueJay firmware, allowing pilots to choose the firmware that best suits their flying style. BlueJay adds features such as configurable PWM frequencies and, on supported hardware/configurations, bidirectional DShot.

The ESC supports standard 8-pin ESC-to-FC connections and is compatible with most Betaflight, INAV, ArduPilot, and other mainstream flight controllers that support DShot or PWM protocols.

The ESC supports:

DShot150

DShot300

DShot600

PWM

This ensures compatibility with both modern digital flight controllers and legacy systems.

No. The ZeniRace ESC does not include an onboard BEC.

If your flight controller or peripherals require regulated 5V or 9V power, use the BEC integrated into your flight controller or install an external BEC.

Yes.

An integrated current sensor provides real-time current telemetry to compatible flight controllers for improved battery monitoring and power management.

TVS (Transient Voltage Suppression) helps protect the ESC from voltage spikes generated during battery connection, rapid throttle changes, or motor braking.

This improves overall reliability and helps extend the lifespan of the ESC.

The ESC is compatible with most brushless motors operating within its voltage and current specifications.

Typical applications include:

5–10 inch FPV drones

Long-range platforms

Cinelifters

Heavy-lift UAVs

Custom drone projects

Always ensure your motor's maximum current draw is within the ESC's rated specifications.

Yes.

Both the 80A and 100A models support up to 8S LiPo input (36V DC), making them suitable for high-voltage FPV and professional UAV applications.

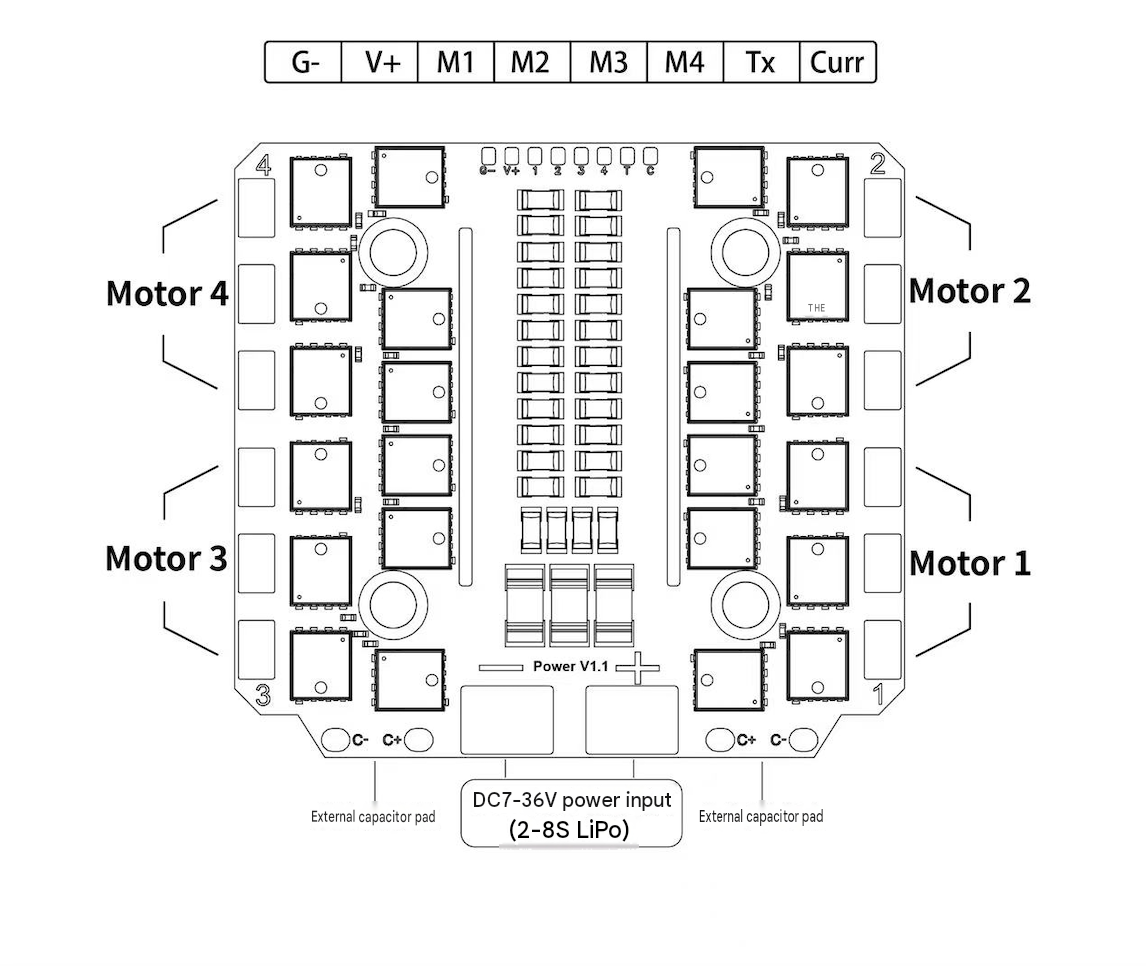

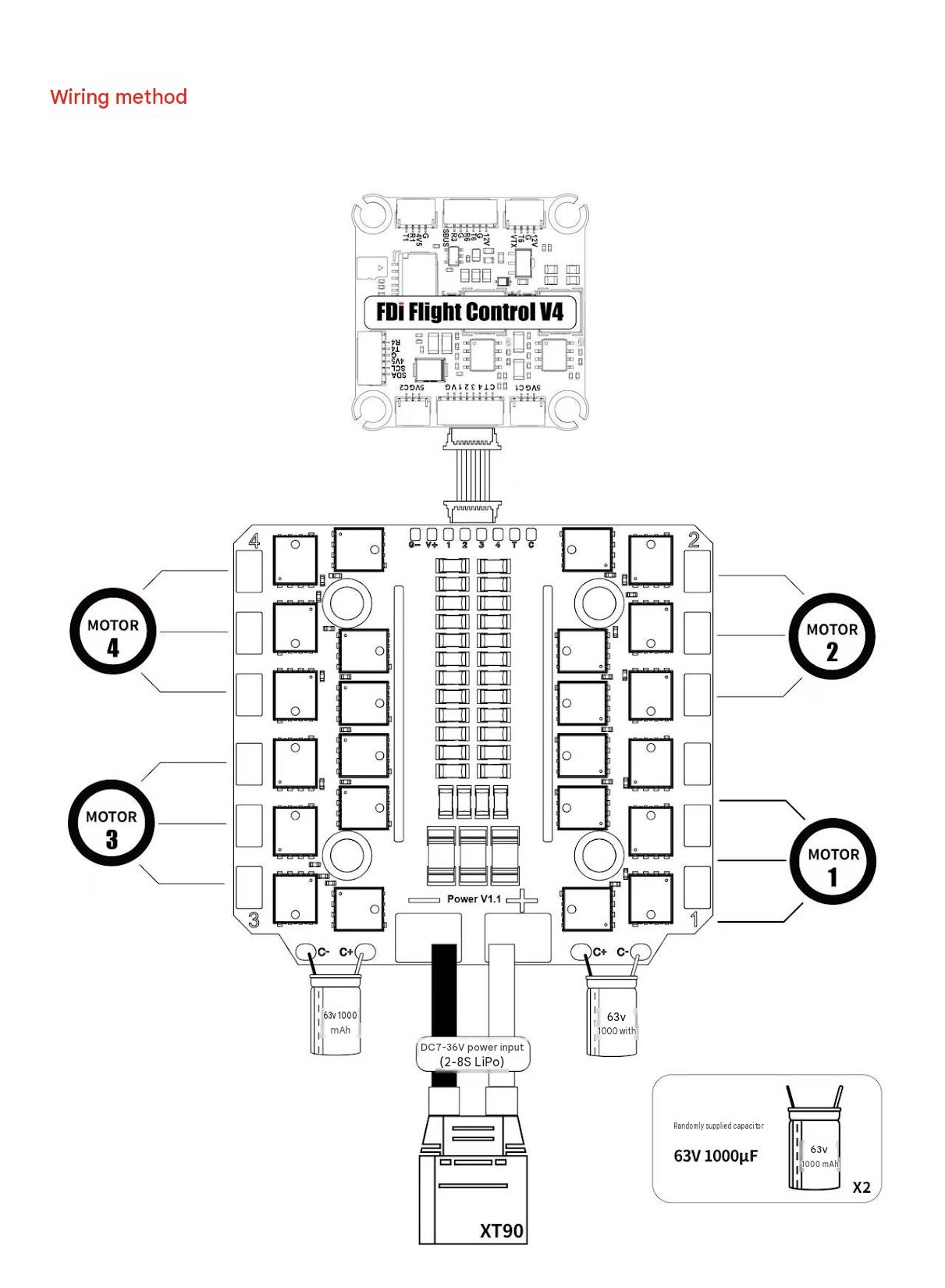

The ESC uses a standard wiring layout:

Battery Input (+ / –)

Motor Outputs (M1–M4)

Signal Connector

Current Sensor Output

Telemetry (TX)

Follow the wiring diagram in the product manual and always verify polarity before connecting the battery.

Yes.

Each ESC includes two 63V 1000μF low-ESR capacitors, which help reduce electrical noise and absorb voltage spikes during high-load operation.

Yes.

The ESC supports firmware updates using compatible BLHeli_S/BlueJay configurators. During flashing, ensure the battery remains connected and do not interrupt power, as doing so can corrupt the firmware.

No.

The ESC is not waterproof and should be protected from water, moisture, and conductive debris.

The ZeniRace ESC is covered by a 3-year limited warranty against manufacturing defects under normal operating conditions.

The warranty does not cover:

Crash damage

Reverse polarity

Improper wiring

Liquid damage

Physical modifications

Damage caused by exceeding rated specifications
