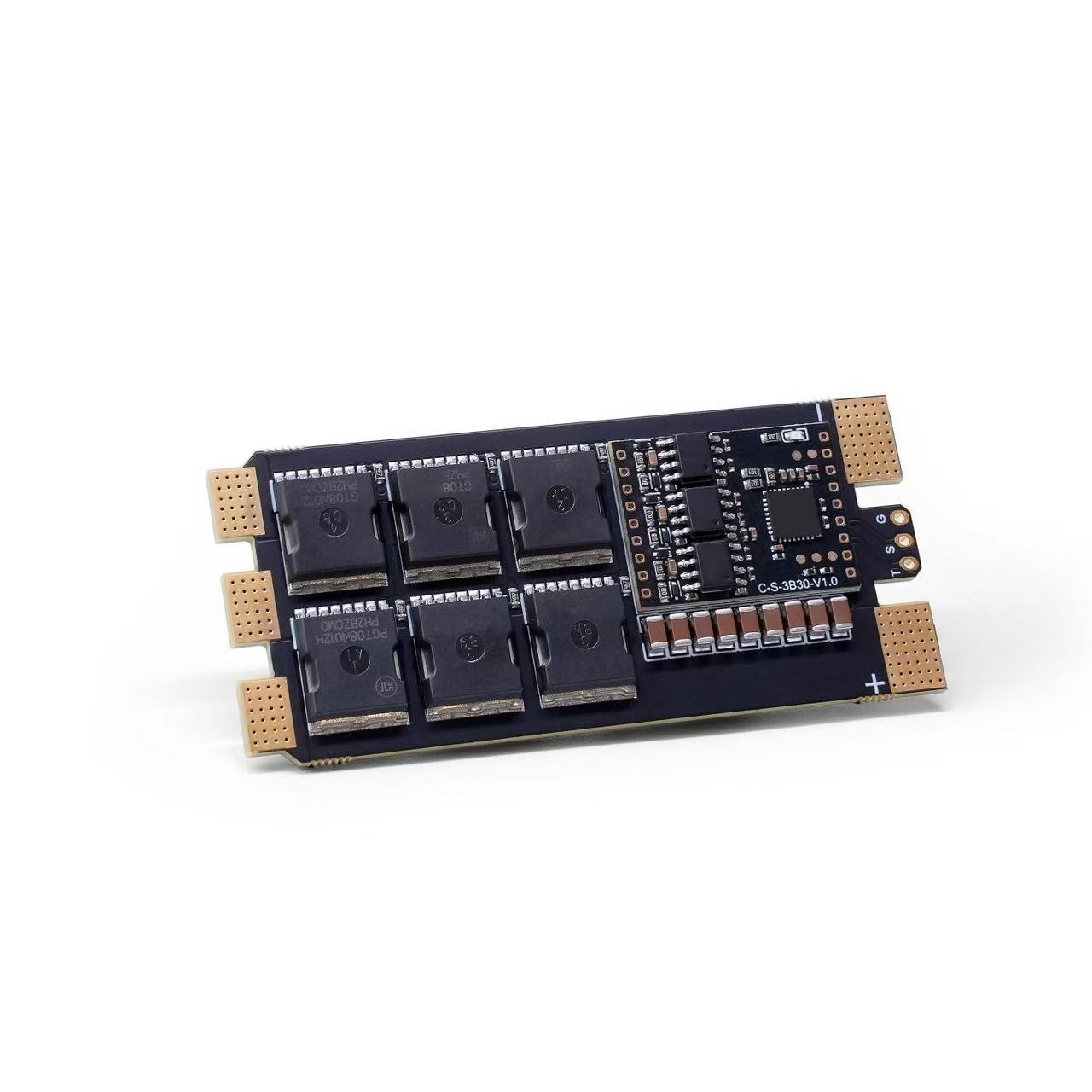

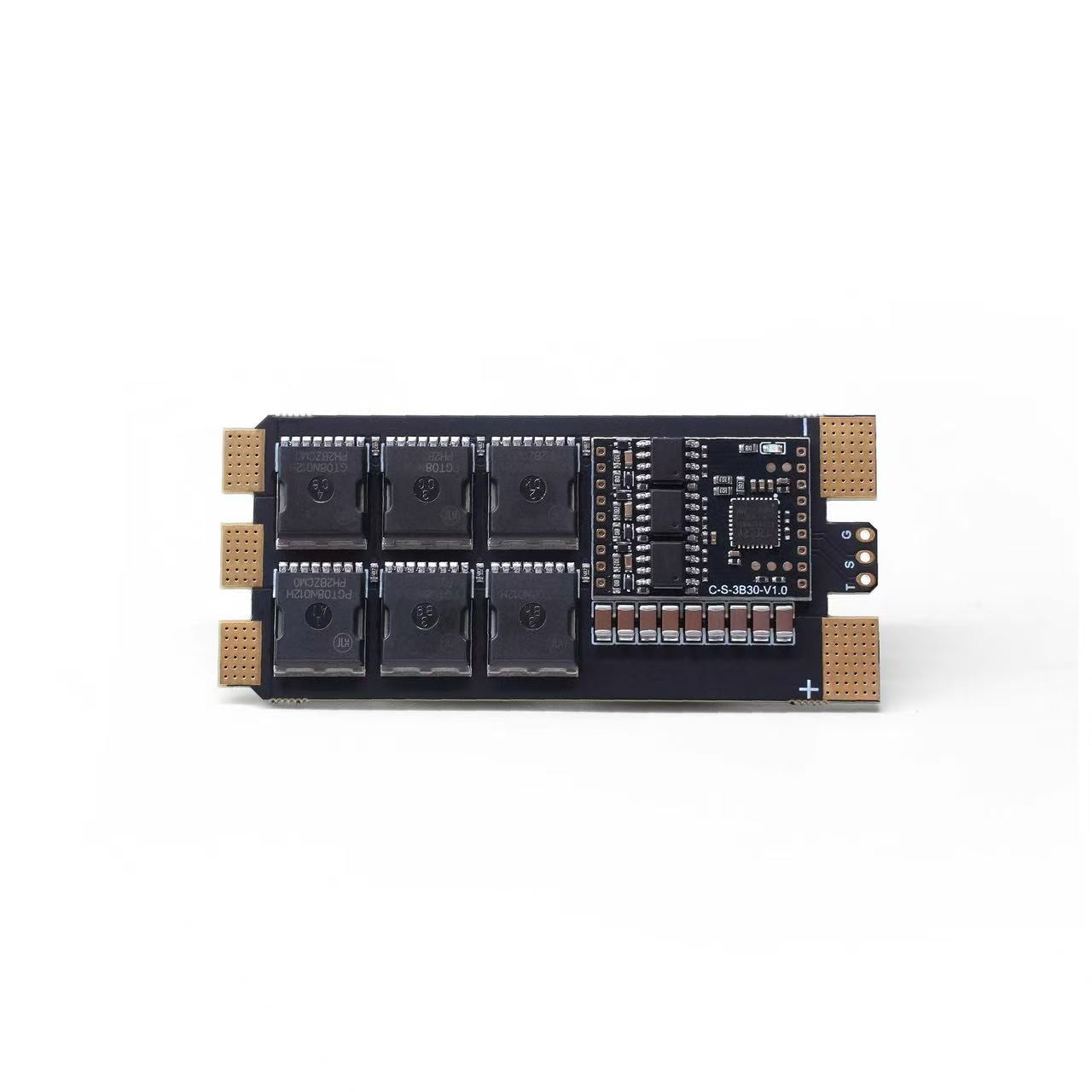

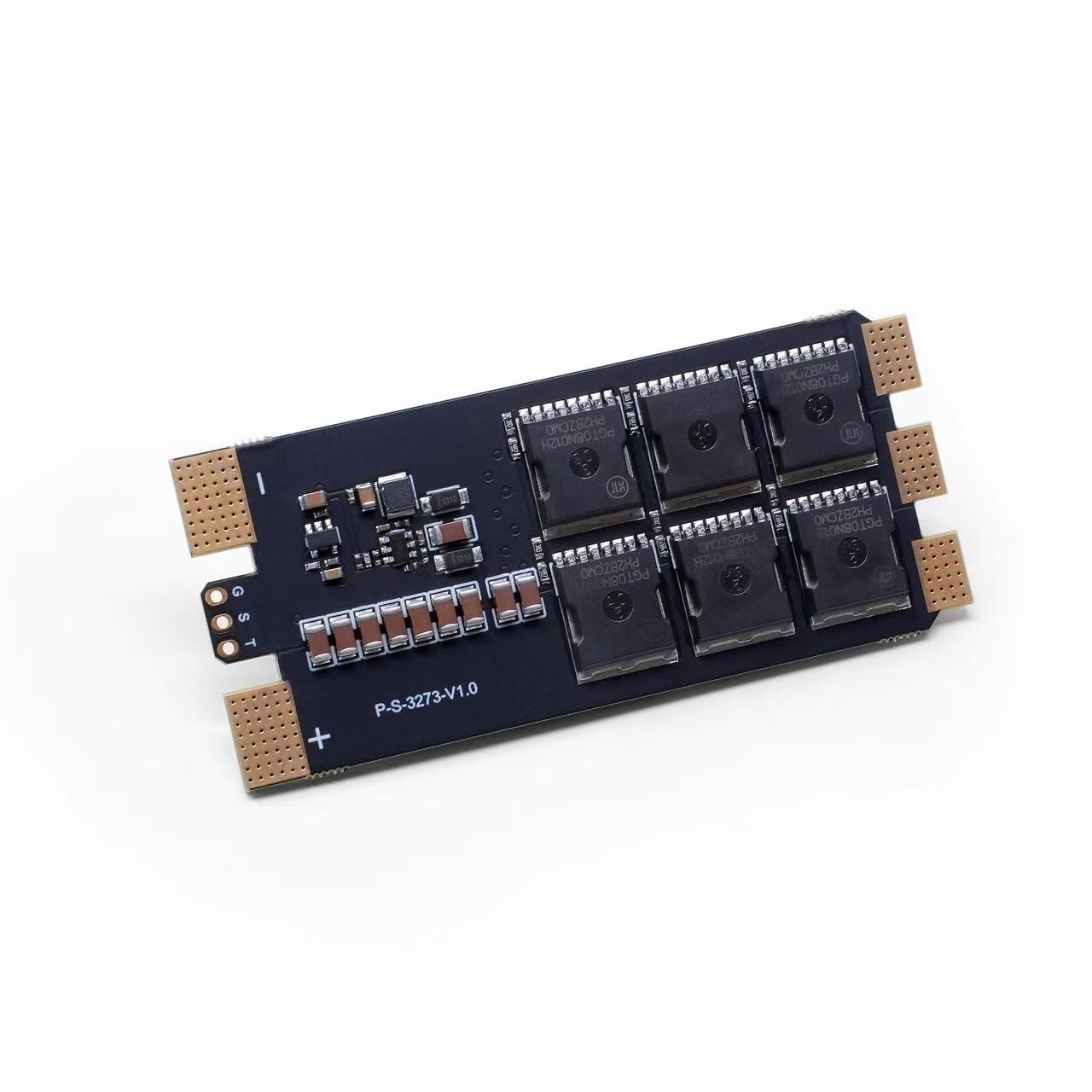

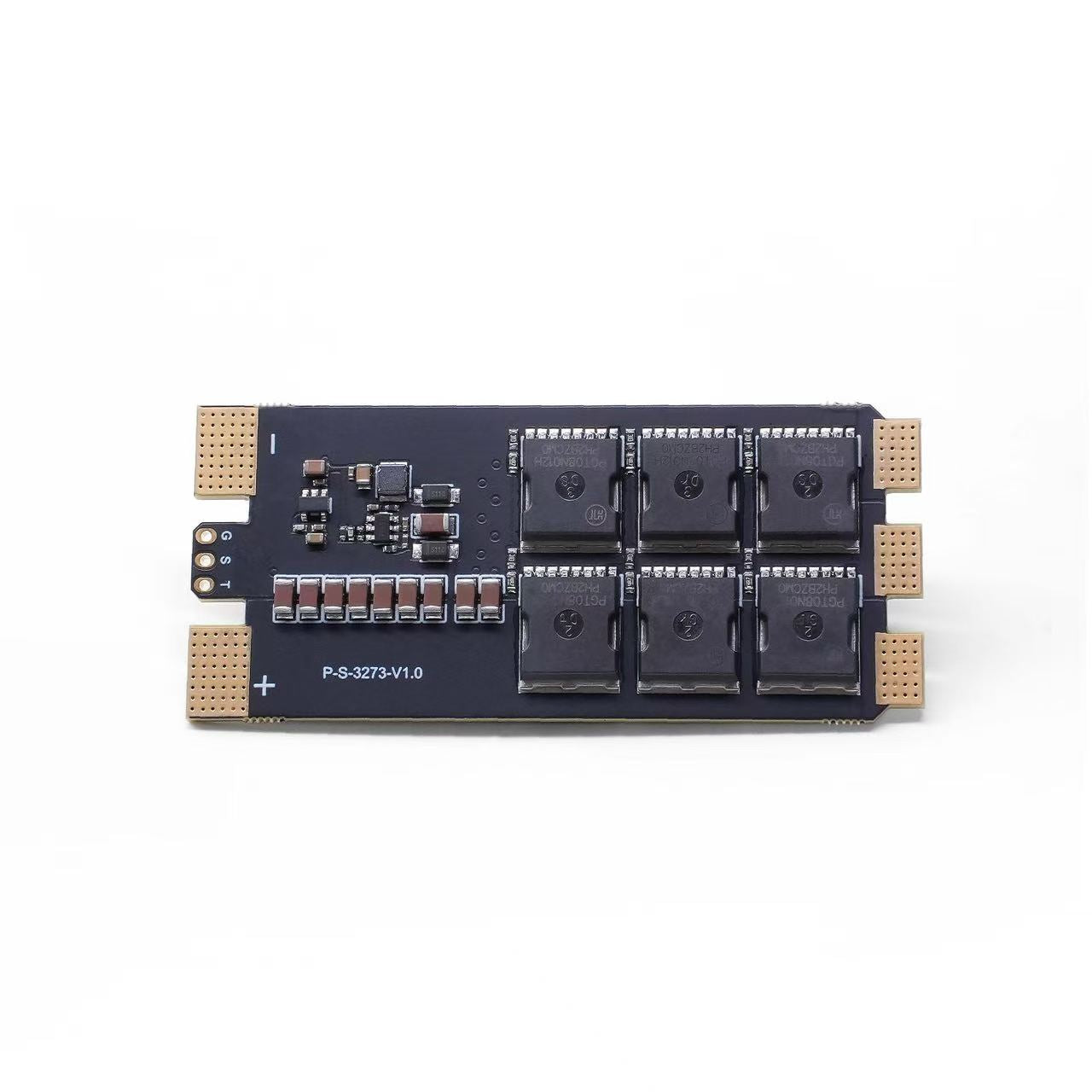

ZeniRace 160A Standalone ESC

SKU: ZR160-032BL

$63.99
/
  • 160A Continuous Power for Demanding Missions：Engineered to deliver 160A continuous current and 180A burst current, providing stable, reliable power for heavy-lift multirotors, industrial UAVs, and high-voltage drone platforms.
  • Supports 2–14S LiPo Systems：Compatible with DC 7–65V (2–14S LiPo), offering exceptional flexibility for custom UAV builds, long-endurance aircraft, VTOL platforms, and professional aerial systems.
  • High-Speed AT32F421 Processor：Powered by the AT32F421 MCU, ensuring fast signal processing, precise throttle response, and consistent motor control during demanding flight conditions.
  • BL32 & AM32 Firmware Ready：Supports both BL32 and AM32 firmware, allowing advanced tuning, responsive throttle performance, and compatibility with modern flight controllers.
  • Premium MOSFET Design：Built with PGT08N MOSFETs to improve switching efficiency, reduce heat generation, and maintain reliable high-current operation.
  • Multiple Control Protocols：Compatible with:DShot150、DShot300、DShot600、PWM；Providing seamless integration with most mainstream flight controllers.
  • Optimized for High-Power UAV Platforms：Designed for applications requiring stable power delivery under sustained heavy loads and high-voltage operation.
Firmware

Secure Checkout

Pay securely with
PayPal

Trusted Delivery

🚚 Free Worldwide Shipping
📦 Tracking Available
🌎 Ships to US & EU

Product Guarantee

✓ 30-Day Money Back Guarantee
✓ 12-Month Warranty
✓ Technical Support
ZeniRace 160A Standalone ESC
ZeniRace 160A Standalone ESC
$63.99
$63.99

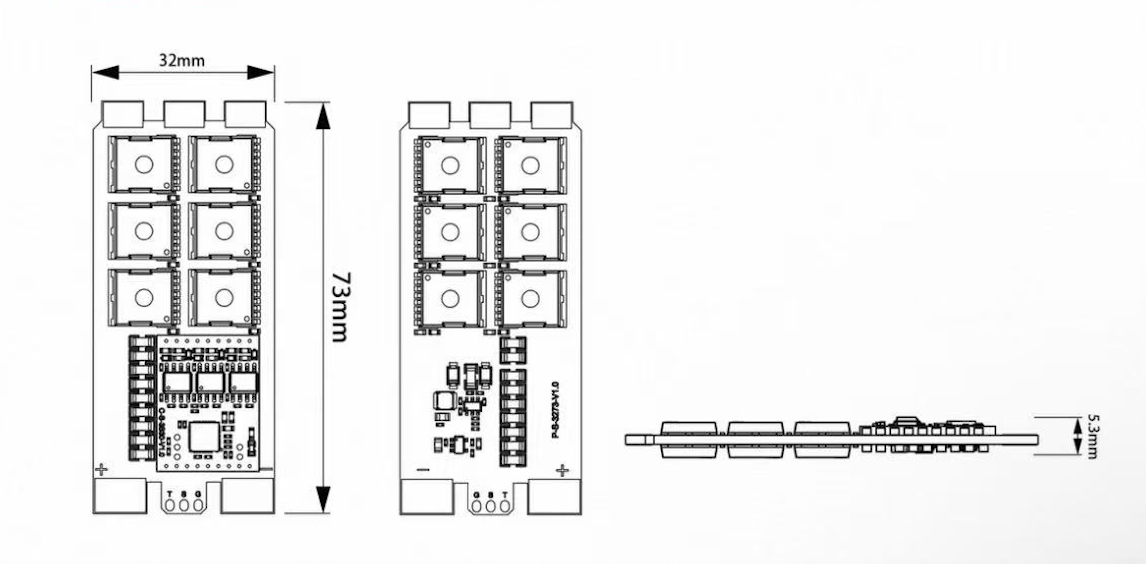

Technical line drawing showing front and side views of an electronic module with dimensions labeled 32mm, 73mm, and 5.3mm on a white background.

POWER YOU CAN DEPEND ON.

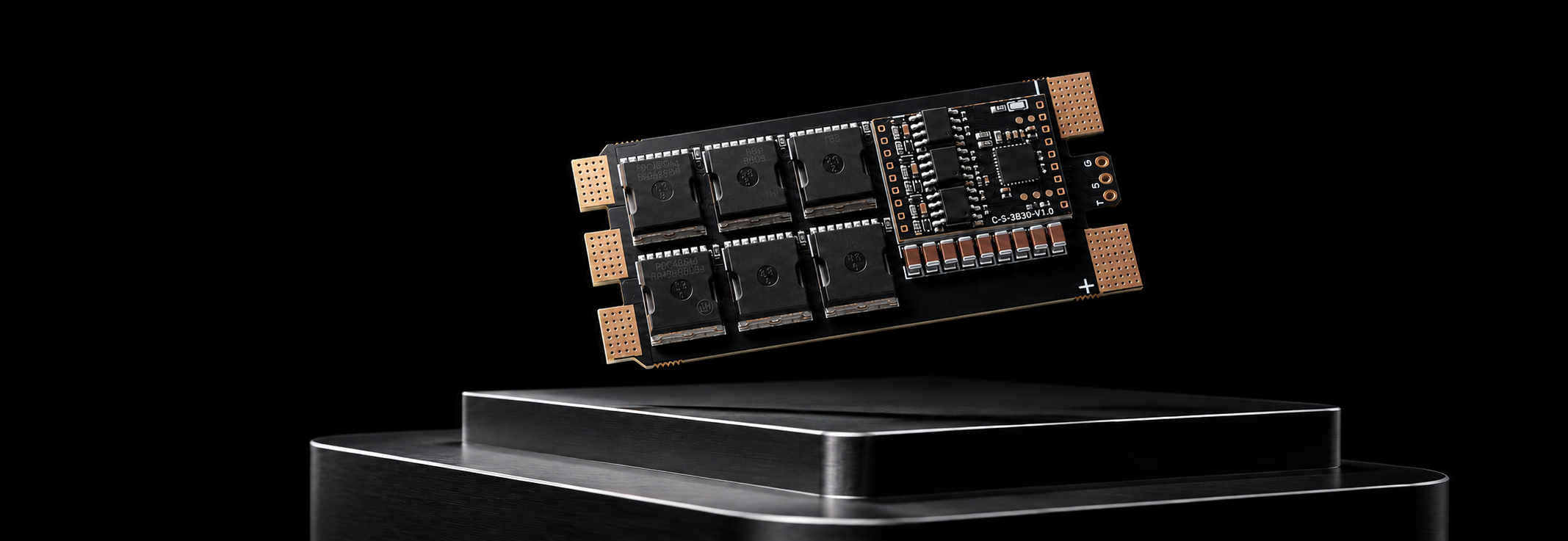

A high-performance memory module with eight black memory chips and gold-plated connectors, floating above a dark metallic pedestal against a solid black background.

Engineered for Extreme Power.

160A continuous output for heavy-lift UAVs, high-voltage platforms, and demanding professional missions.

A large black quadcopter drone with a mounted camera hovers over a mountain valley at sunset, with blurred peaks and a river in the background.

Stable Power Under Load.

Designed to maintain smooth motor control during continuous high-current operation.

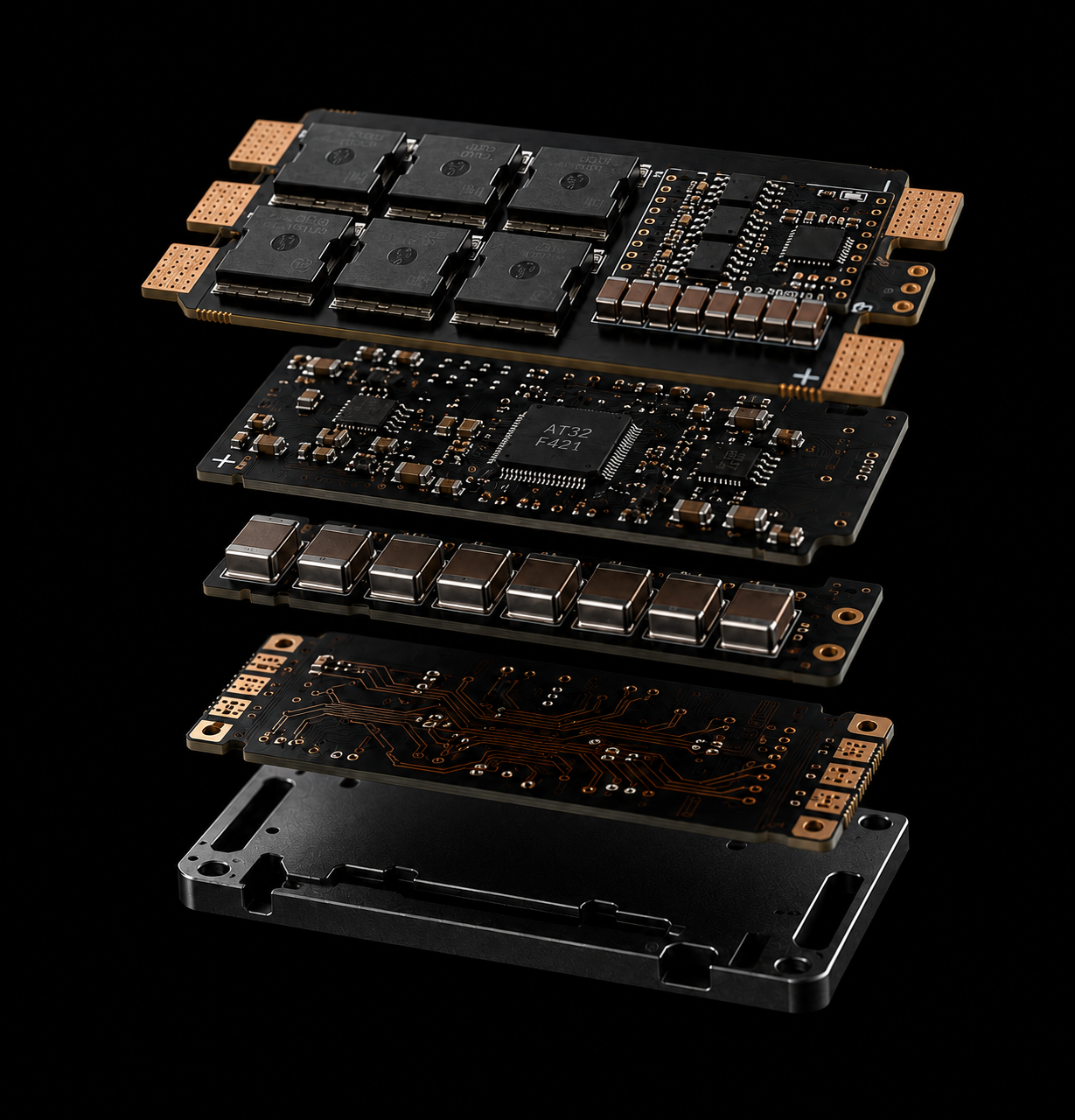

Four stacked electronic circuit boards with integrated heat spreaders and gold-plated connectors, arranged in a vertical exploded view against a solid black background.

Precision Starts Inside.

Every component is selected to deliver dependable performance under demanding conditions.

A large black multi-rotor drone with a camera gimbal suspended below, flying over a dusty rocky desert landscape with mountains in the background.

Designed for Complex Systems.

Perfect for X8, VTOL, coaxial, and custom professional UAV platforms.

A large electric vertical takeoff and landing (eVTOL) drone flies over a coastal ocean at sunset, with cliffs and a beach visible below.

High Voltage. Greater Efficiency.

Optimized for 2–14S systems to maximize efficiency and reduce power loss during long-duration missions.

ZeniRace 160A Standalone ESC FAQ

The ZeniRace 160A Standalone ESC supports DC 7–65V (2S–14S LiPo), making it suitable for both standard FPV builds and high-voltage professional UAV platforms.

The ESC delivers 160A continuous current and 180A burst current, providing stable, reliable power for high-thrust motors, large propellers, and heavy-load applications.

The ESC supports BL32 and AM32 firmware, giving pilots and system integrators access to modern ESC features, responsive throttle control, and advanced tuning options. AM32 is actively maintained and supports modern 32-bit ESC hardware such as the AT32F421 MCU.

The ESC is compatible with:

DShot150

DShot300

DShot600

PWM

These protocols provide broad compatibility with most modern flight controllers and UAV systems.

No.

The ZeniRace 160A Standalone ESC does not include an onboard BEC. Use a flight controller with an integrated BEC or an external voltage regulator to power onboard electronics.

No.

The 160A Standalone ESC does not provide current sensor telemetry. If current monitoring is required, an external current sensor or compatible power distribution board should be used.

No.

This model does not include integrated TVS surge protection. For high-voltage or long power lead installations, using a low-ESR capacitor close to the ESC is recommended to help reduce voltage spikes and electrical noise.

The ESC is compatible with most sensorless brushless motors operating within its voltage and current specifications.

Typical applications include:

Heavy-lift multirotors

X8 and coaxial drone platforms

VTOL aircraft

Industrial UAVs

Agricultural drones

Custom UAV systems

Always verify that the motor's maximum current draw remains within the ESC's rated specifications.

Yes.

With support for up to 14S LiPo, the ZeniRace 160A Standalone ESC is designed for high-voltage propulsion systems where efficiency and stable power delivery are essential.

Standalone ESCs offer several advantages for larger UAV platforms:

Easier replacement if a single ESC fails

Improved heat dissipation

Flexible installation on custom frames

Better scalability for X8, VTOL, and heavy-lift aircraft

Reduced wiring constraints on large airframes

These advantages make standalone ESCs the preferred solution for professional UAVs and industrial drone systems.

The ESC works with most mainstream flight controllers supporting PWM or DShot protocols, including systems running:

Betaflight

ArduPilot

PX4

INAV

Always confirm your flight controller's output protocol and voltage requirements before installation.

Yes.

The ESC supports firmware configuration and updates using compatible BL32 or AM32 tools. Follow the firmware instructions carefully and avoid interrupting power during the update process. AM32 is an actively developed open-source firmware for supported 32-bit ESCs.

No.

The ESC is not waterproof and should be protected from water, excessive moisture, conductive dust, and corrosive environments.

The ESC is engineered for demanding high-power applications, including:

Heavy-lift UAVs

Industrial inspection drones

Mapping and surveying platforms

Agricultural UAVs

VTOL aircraft

Long-endurance UAV systems

Custom multirotor development

Research and robotics projects

The ZeniRace 160A Standalone ESC is backed by a limited warranty against manufacturing defects under normal operating conditions.

The warranty does not cover:

Crash or impact damage

Reverse polarity connection

Incorrect wiring or soldering

Water or liquid damage

Physical modification

Damage caused by exceeding the rated voltage or current specifications
